Panasonic ERJ-UxR Anti-Sulfur Thick Film Chip Resistors

Panasonic ERJ-U2R, ERJ-U3R, and ERJ-U6R Precision-Type Anti-Sulfur Thick Film Chip Resistors offer high precision and provide anti-sulfurization characteristics that avoid an open circuit caused by a sulfide disconnection. Panasonic ERJ-UxR resistors achieve high resistance to sulfurization through the use of an anti-sulfurated electrode structure and material. AEC-Q200 compliance and IEC 60115-8, JIS C 5201-8, and JEITA RC-2134C reference standards for the entire ERJ-UxR Thick Film Chip Resistor series ensures optimal quality and reliability. Applications include automotive, general, home appliance, and information communication technology (ICT).

Features

High resistance to sulfurization achieved by adopting anti-sulfurated electrode material
Ag-Pd based inner electrode and structure
Highly reliable due to metal glaze thick film resistive element and three layers of electrodes
High precision
±0.5% resistance tolerance
±50 x 10^-6/°C temperature coefficient of resistance (TCR)

High rated power at 0.25W
-55°C to +155°C operating temperature range
Suitable for reflow and flow soldering
AEC-Q200 compliant
RoHS / REACH compliant
Reference standards: IEC 60115-8, JIS C 5201-8, and JEITA RC-2134C

Applications

Automotive
- Electronic control units (ECU)
- Battery management systems (BMS)
- Divider circuits
Home appliances

General
- Measurement equipment
- Factory automation
- Tooling devices
ICT

Specifications

Case size
- 0402 (U2R)
- 0603 (U3R)
- 0805 (U6R)

Power rating
- 0.1W (U2R and U3R)
- 0.125W (U6R)

Panasonic ERJ-UxR Anti-Sulfur Thick Film Chip Resistors

Features

Applications

Specifications

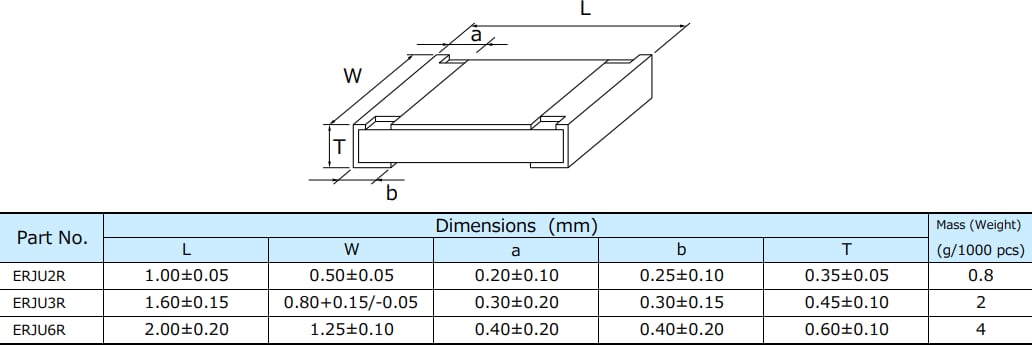

Package Dimensions
