Panasonic Electronic Components EZJP-M Multilayer Varistors

Panasonic EZJP-M Multilayer Varistors offer excellent ESD suppression due to original advanced material technology. These multilayer varistors feature no polarity (bipolar) and are capable of replacing two Zener diodes and one capacitor. The lead-free plating terminal electrodes offer great solderability. The EZJP-M varistors have large electro-static resistance and meet IEC61000-4-2, ISO10605, and level 4 standards. These varistors are AEC-Q200 qualified and RoHS compliant. Typical applications include engine Electronic Control Unit (ECU), communication-line, audio-navigation, LED light, and control software.

Features

Excellent ESD suppression due to original advanced material technology
Large electrostatic resistance
Meet IEC61000-4-2 and ISO10605 standards
No polarity (bipolar) facilitated:
- Capable of replacing two Zener diodes and one capacitor
Lead-free plating terminal electrodes enable great solderability
Wide range of products are available by adopting multilayer structure and meet various needs
AEC-Q200 qualified
RoHS compliant

Applications

Engine ECU
Various body ECU
Communication-line:
- Controller Area Network (CAN)
- Local Interconnect Network (LIN)

Audio-navigation
LED light
Control software

Panasonic Electronic Components EZJP-M Multilayer Varistors

Features

Applications

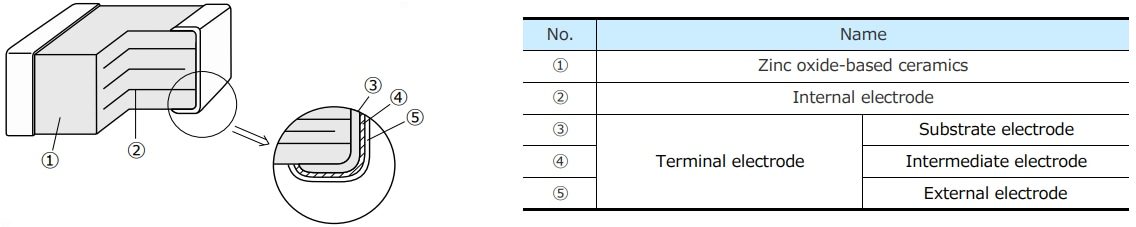

Construction

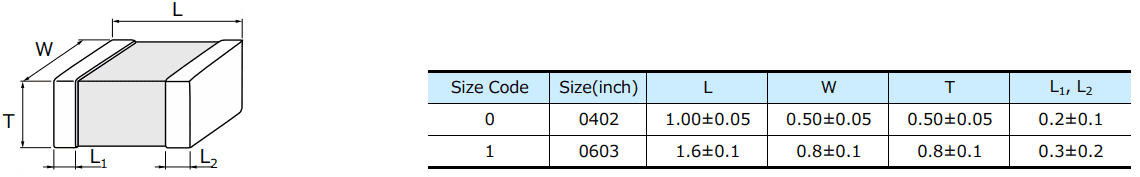

Dimensions in mm
