OStream OSTR-WF-COMBO-1 Computer Vision System

OStream Computer Vision System is designed to digitize the physical world into object data for IoT analytics. The wire-free design is based on the Ripl Network 2.4GHz point-to-point wireless radio. It enables computer vision with long-range connectivity with no power plugs and no ethernet cables.

The OStream Computer Vision System includes one Wirefree Object Camera and one Long Distance Access Point. The Access Point offers a range of up to 1KM and can support up to 10 Wirefree Object Cameras. Both the Camera and Access point feature IP67 enclosures and are FCC and CE certified.

Features

Wirefree Object Camera
- Power: 20,000mA
- Resolution: 5MP QVGA 320 x 240 up to QSXGA 2592 x 1944
- Motion detection: Computer vision crops objects of interest
- Frame per second: Up to 30fps
- Image format: JPEG
- Shutter: Rolling shutter/frame exposure
- Optical size: 0.25″
- Networking
  - Point to Point Wireless Radio (RipL)
  - Spectrum: 2.4GHz Spread Spectrum
  - Distance: Up to 1KM
  - Maximum bandwidth: 2Mbps
- Enclosure: IP67
- Dimensions: 11.0cm x 12.7cm x 13.5cm
- Weight: 400g
- Certifications: FCC and CE
- CPU: STM32
- Updates: OTA through LDAP

Long Distance Access Point
- Power: 110V to 240V wall plug
- Networking
  - To Camera
    - Point to Point Wireless Radio (RipL)
    - Spectrum: 2.4GHz Spread Spectrum
    - Distance: Up to 1KM
    - Maximum bandwidth: 2Mbps
  - To Internet
    - Ethernet, Wi-Fi, or cellular (optional)
- Enclosure: IP67
- Dimensions: 11.0cm x 12.7cm x 5.0cm
- Weight: 300g
- Certifications: FCC and CE
- CPU: Rockchip RK3399 Arm®
- OS: Ubuntu 18LTS
- Updates: OTA through Cloud

OStream OSTR-WF-COMBO-1 Computer Vision System

Features

Videos

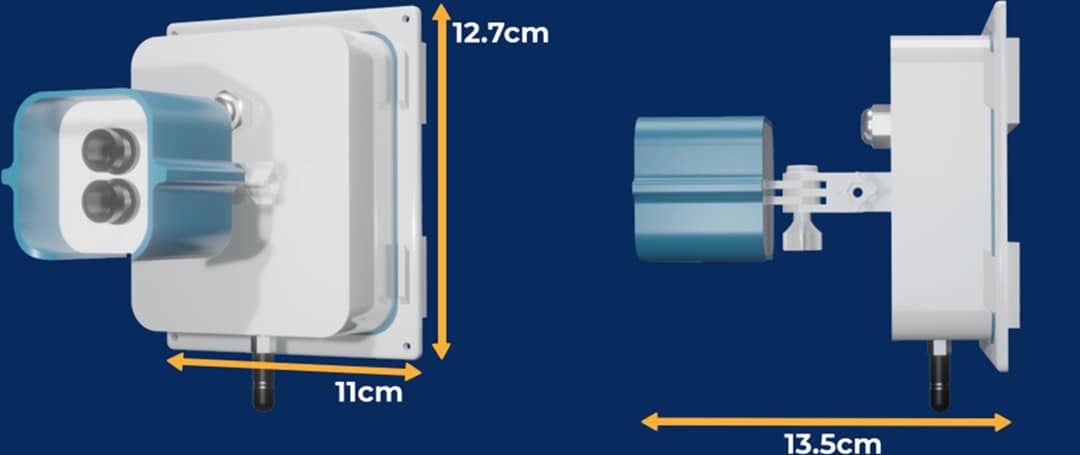

Camera Dimensions

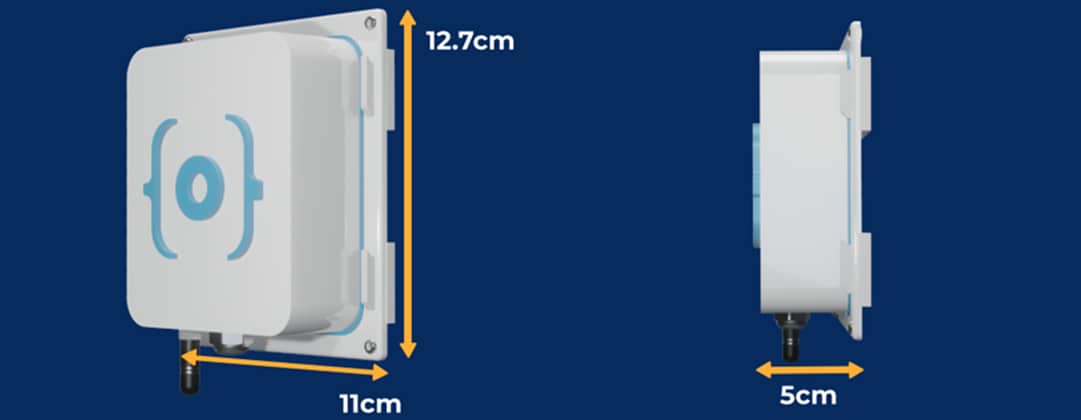

LDAP Dimensions
