OStream OSTR-WF-CAM-1 Wirefree Object Camera

OStream OSTR-WF-CAM-1 Wirefree Object Camera works with the OStream Computer Vision System to digitize the physical world into object data for IoT analytics. The wire-free design is based on the Ripl Network 2.4GHz point-to-point wireless radio. It enables computer vision with long-range connectivity with no power plugs and no ethernet cables.

The OStream Wirefree Object Camera connects wirelessly to the Long Distance Access Point (LDAP) included in the Computer Vision System. The Access Point offers a range of up to 1KM and can support up to 10 Wirefree Object Cameras. Both the Camera and Access point feature IP67 enclosures and are FCC and CE certified.

Features

  • Power: 20,000mA
  • Resolution: 5MP QVGA 320 x 240 up to QSXGA 2592 x 1944
  • Motion detection: Computer vision crops objects of interest
  • Frame per second: Up to 30fps
  • Image format: JPEG
  • Shutter: Rolling shutter/frame exposure
  • Optical size: 0.25″
  • Networking
    • Point to Point Wireless Radio (RipL)
    • Spectrum: 2.4GHz Spread Spectrum
    • Distance: Up to 1KM
    • Maximum bandwidth: 2Mbps
  • Enclosure: IP67
  • Dimensions: 11.0cm x 12.7cm x 13.5cm
  • Weight: 400g
  • Certifications: FCC and CE
  • CPU: STM32
  • Updates: OTA through LDAP

Videos

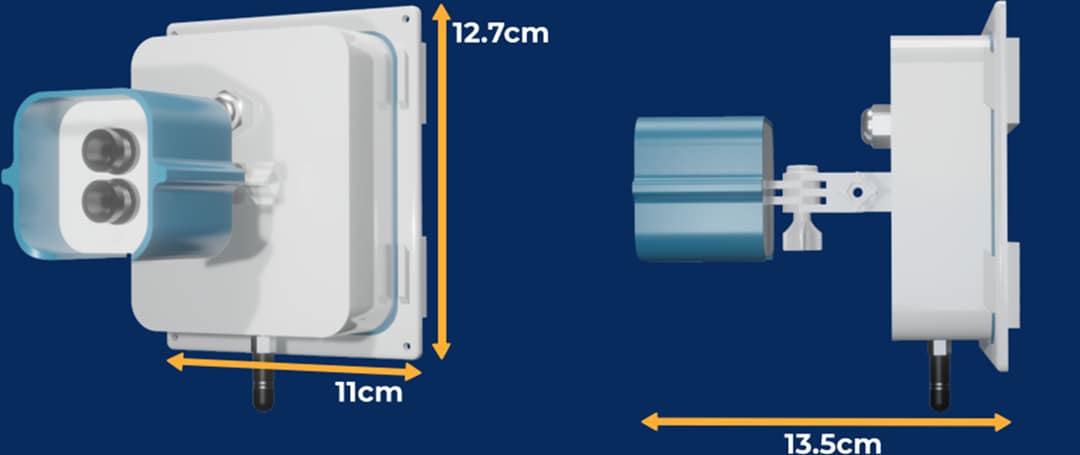

Dimensions
