OSEPP Electronics Hourglass DIY Solder Kit

OSEPP Electronics Hourglass DIY Solder Kit allows hobbyists and education institutes to learn how to solder. Each OSEPP Electronics Hourglass DIY Solder Kit comes with easy-to-follow pictorial instructions and a how-to solder and desoldering guide.

Features

  • 42 LEDs (extras included)
  • Sound indicator
  • Push-button time selection
  • Rotate to reset (tilt sensor)
  • 2xAAA battery power (not included)
  • Microprocessor technology
  • On/Off switch

Kit Contents

  • 42 – 5mm LEDs
  • 2 – Mini pushbutton (6mm x 6mm)
  • 2 – Pin headers (2.54mm 1×8)
  • 2 – Female headers (2.54mm 1×8)
  • 7 – 330Ω resistors
  • 3 – 1KΩ resistors
  • 1 – 3V buzzer
  • 1 – Tilt sensor (SW-52D)
  • 1 – On/Off switch (3.7mm x 8.5mm)
  • 1 – Microprocessor (STC15W204S)
  • 4 – AAA battery clips
  • 1 – 100nF capacitor
  • 1 – 6″ (2.5mm width) desoldering braid

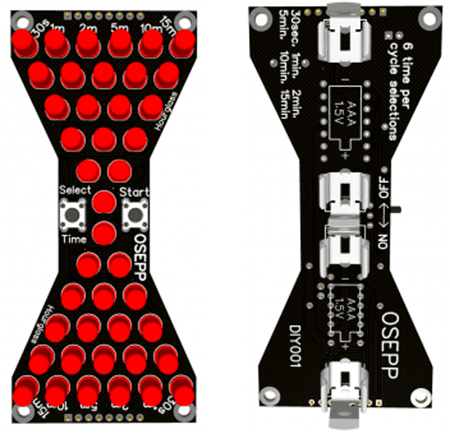

Top & Bottom Kit View

Mechanical Drawing - OSEPP Electronics Hourglass DIY Solder Kit
