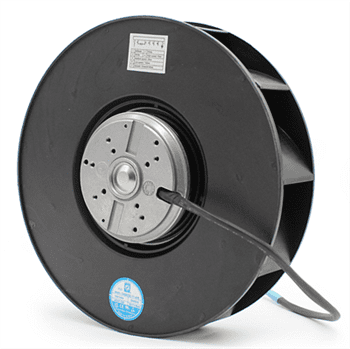

Orion Fans OAB220 Series 3-Speed Blowers

Orion Fans OAB220 Series 3-Speed Fans feature three blowing speeds for added flexibility in performance versus noise. The fans include a capacitor as a cost-saving solution. The OAB220 series is constructed with a die-cast aluminum frame, a UL 94V-0-rated plastic impeller, and four 22AWG wire leads. The Orion Fans OAB220 Series 3-Speed Fans are compatible with a DR22025D steel duct ring as an optional accessory. The fans operate with a 555CFM max airflow rating and a 75.2dBA noise level. The OAB220 fans are RoHS-compliant and ideal for agriculture, ventilation, medical, and industrial equipment applications.

Features

Three blowing speeds
Added flexibility in performance vs. noise

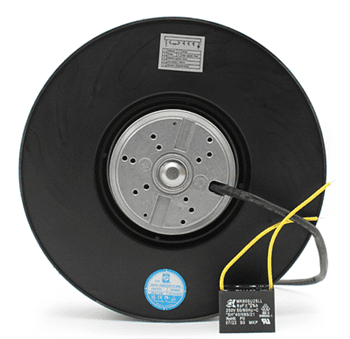

Capacitor included
4x wire leads, 22AWG UL 1015
Die-cast aluminum frame
PA66, UL 94V-0 plastic impeller

Ball-bearing system
220mm x 76mm dimensions
Compatible with DR22025D duct ring
Meets UL, cUL, TUV, and CE standards
RoHS compliant

Applications

Agriculture
Ventilation

Medical equipment
Industrial equipment

Specifications

115V_AC to 230V_AC rated voltage range
100V_AC to 245V_AC voltage range
50Hz to 60Hz frequency range
82W to 115W input power range
1.6A to 0.71A rated current range
2650rpm to 2975rpm rated speed range
498CFM to 555CFM max airflow range

73.4dBA to 75.2dBA noise level range
1.6″H₂O to 2.1″H₂O max static pressure
1500V_AC/min dielectric strength at <1mA
≥100MΩ insulation resistance at 500V_AC/min
-20°C to +70°C operating temperature range
-40°C to +80°C storage temperature range

Product Portfolio

Chart - Orion Fans OAB220 Series 3-Speed Blowers
