ORing IGAP-610H+ Din-Rail Wireless Access Point

ORing IGAP-610H+ Din-Rail Wireless Access Point is designed to provide IEEE 802.11 a/b/g/n WLAN wireless connectivity to industrial networks. The IGAP-610H+ can be configured to operate in AP, Client, or Repeater mode and can also be used for wireless load balancing. The IGAP-610H+ provides a high power output of 27dBm and supports up to 300Mbps link speed.

The IGAP-610H+ can be configured by WEB interface via LAN port or WLAN interface. The Access Point also features Power over Ethernet (PoE) Power Delivery (PD) compliant with the IEEE802.3at PoE PD specification, enabling users to save the layout cost of running a dedicated power line.

The ORing IGAP-610H+ Wireless Access Point is offered in both US (IGAP-610H+_US) and European (IGAP-610H+_EU) frequency bands.

Features

High-speed connectivity
Dual-band IEEE 802.11 a/b/g/n and b/g/n WLAN interface selectable
Support up to 300Mbps link speed
12V to 48V_DC power input on the terminal block
1 Gigabit Ethernet ports with 2KV isolation for PoE PD
High security
- WEP/WPA/WPA-PSK (TKIP, AES)
- WPA2/WPA2-PSK (TKIP, AES)
- 802.1X Authentication supported
Support X-roaming <100ms
Supports multiple-SSID up to 4 SSID with VLAN

Supports MAC filtering
High 27dBm transmission power
High data throughput with HT40 2×2 MIMO
Supports AP, Client, and Repeater modes
Wireless connecting status monitoring
HTTPs protocol supported for secured management
Event Warning by Syslog, Email, SNMP Trap, and Relay output
Rigid IP30 housing design
DIN-rail and wall-mount options
45mm x 95mm x 115mm enclosure

Applications

Reliable wireless connectivity for industrial environments

Documents

Datasheet
User Manual
Quick Installation Guide

ORing IGAP-610H+ Din-Rail Wireless Access Point

Features

Applications

Documents

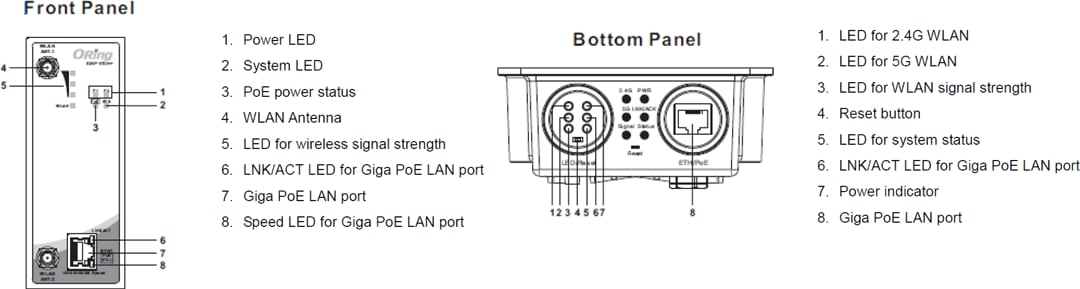

Panel Layout
