onsemi Strata Enabled STR-NCD98010-GEVK Evaluation Board

onsemi Strata Enabled STR-NCD98010-GEVK Evaluation Board provides hardware to realize a complete analog to digital signal path required to analyze the performance metrics of the NCD98010 ADC. The NCD98010 12-Bit Successive-approximation (SAR) Analog to Digital Converter (ADC) provides a low power solution using a capacitor-based SAR architecture. The NCD98010 ADC features nanowatt power consumption, 2MSPS sampling rate, and a fully differential input.

The STR-NCD98010-GEVK Evaluation Board is used with Strata to control the NCD98010 and provide dynamic performance metrics for different clock speeds and supply voltages.

Features

12-bit Analog to digital conversion
- Fully differential input
- Low 2pF input capacitance
Digital SPI interface
- Available in signed and unsigned output formats
Split analog / digital supplies
- Digital and analog supplies can be supplied separately from 1.65V to 3.6V

Low power consumption
- 7uA at 100kSPS
- Analog current consumption CAN to go down to nano-amps with slower clock rates
Small package size
- 1.5mm x 1.5mm 8-pin X2QFN
Pre-calibrated

Applications

Low-power data acquisition
- Battery-powered equipment
- Level sensors
- Ultrasonic flow meters
- Motor controls
- Wearable fitness devices
- Portable medical equipment
- Glucose meters

onsemi Strata Enabled STR-NCD98010-GEVK Evaluation Board

Features

Applications

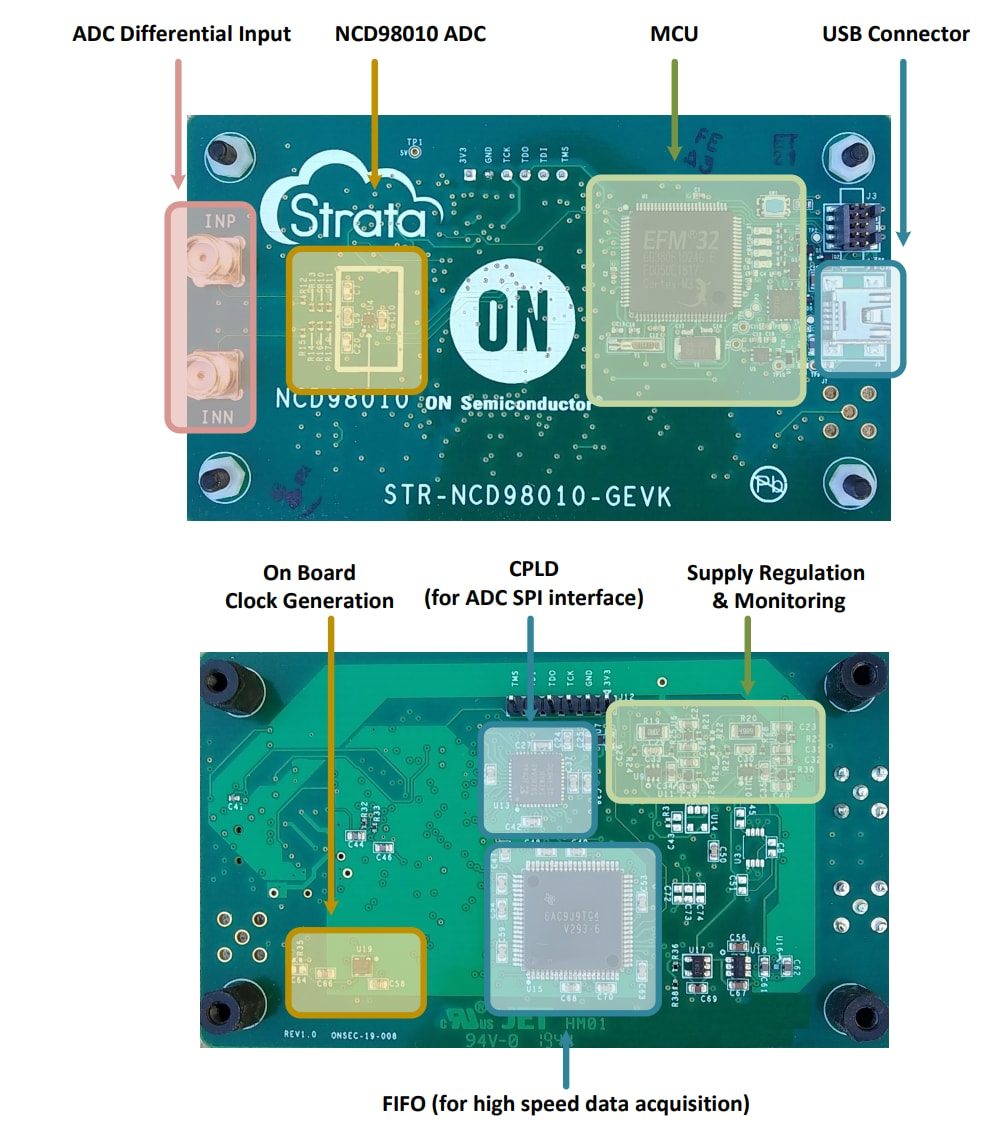

Front & Back Overview

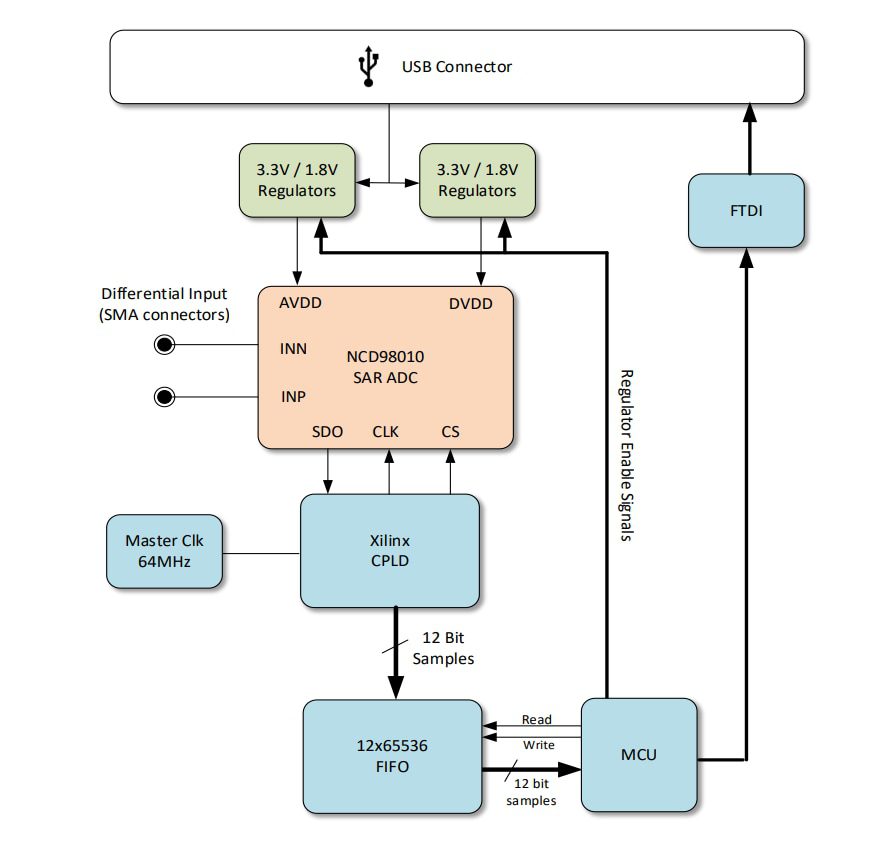

Block Diagram
