onsemi STR-NCS36510-ZB-EH-1-GEVK Green Power Kit

onsemi STR-NCS36510-ZB-EH-1-GEVK Green Power Kit demonstrates the use of NCS36510 in battery-free Zigbee^® green power applications. This kit features a Zigbee^® Coordinator (ZC) USB device that interfaces with strata and two energy-harvesting nodes that act as Zigbee^® Green Power Devices (ZGPD). These devices feature a switch that generates energy to power the NCS36510 module when turned on. The STR-NCS36510-ZB-EH-1-GEVK kit features a 32-bit ARM^® cortex-M3 processor and offers 640kB FLASH and 48kB RAM.

This kit offers exceptional receiver sensitivity of -99dBm and up to 8dBm programmable output power. The STR-NCS36510-ZB-EH-1-GEVK kit features multiple sleep modes including coma mode sleep current (0.65µA) and coma mode leakage current (0.18µA). Typical applications include IEEE^® 802.15.4 Zigbee^®, 6LoWPAN, thread wireless applications, smart home security, automation, lighting, building, and industrial automation.

Features

2.4GHz IEEE^® 802.15.4 module pre-certified with FCC and Zigbee^® PRO R21
Firmware based on the DSR ZBOSS Zigbee^® 3 and Zigbee^® green power stacks
32-bit ARM^® cortex-M3 processor
6.9mW ultra-low transmit power consumption
6.6mW ultra-low receive power consumption
-99dBm exceptional receiver sensitivity
Up to 8dBm programmable output power

Multiple sleep modes:
- 0.65µA coma mode sleep current
- 0.18µA coma mode leakage current
Embedded memory configurations:
- 640kB FLASH
- 48kB RAM

Applications

IEEE^® 802.15.4 Zigbee^®/ 6LoWPAN/ thread wireless applications
Smart home security, automation, and lighting

Building and industrial automation

onsemi STR-NCS36510-ZB-EH-1-GEVK Green Power Kit

Features

Applications

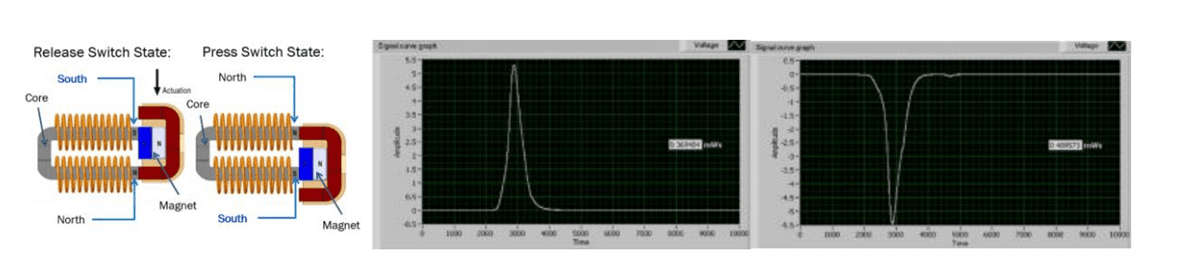

ZF Energy Harvesting Switch Operation
