onsemi STR-NCS32100-GEVK Evaluation Kit

onsemi STR-NCS32100-GEVK Evaluation Kit provides hardware and a PCB rotary sensor for a full demonstration of the NCS32100 sensor. The NCS32100 sensor is connected to a fully functional PCB rotary sensor capable of sensing positions with an accuracy of <±50arcsec. This NCS32100 sensor features interfaces with up to 8 inductive coils and supports low-power battery mode. The NCS32100 evaluation board houses a master MCU that is programmed to communicate with the NCS32100 sensor over the RS485 interface. This NCS32100 sensor is used in rotary position encoding, printing, precision instrumentation, automation, and robotics applications.

Features

NCS32100 sensor:
- Interfaces with up to 8 inductive coils
Delivers rotary position and velocity over a 2.5MHz RS485 Bus
Connection between the external master and NCS32100 sensor is implemented with a 2.5MHz RS485 interface
Houses a master MCU that is programmed to communicate with the NCS32100 over the RS485 interface
Adjustable regulator for Battery voltage generation:
- Backup battery voltage to the NCS32100 sensor can be adjusted with R350 (potentiometer) from 1V to 5V
- Clockwise turn lowers VBAT voltage

Supports low-power battery mode
Easy to use integrated solution:
- Sensor front end, DSP, MCU, and firmware
Fewer components:
- Easier to manufacture
- Fewer points of failure
- Fewer supply chain risks
- Fewer components

Applications

Rotary position encoding
Precision instrumentation
Food and beverage
Material handling
Packaging
Mobile vehicle
Industrial factory automation
Robotics

Printing
Textiles
Aerospace
Lift Industry
Motor feedback
Conveying
Automation

onsemi STR-NCS32100-GEVK Evaluation Kit

Features

Applications

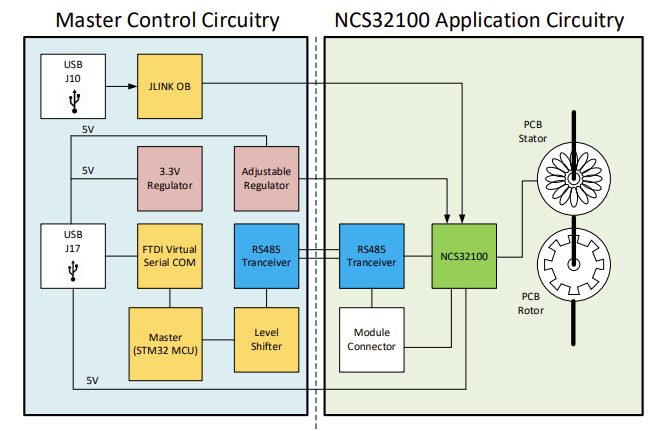

NCS32100 Evaluation Board Block Diagram
