onsemi SECO-NCV7685RGB-GEVB RGB Lighting Evaluation Board

onsemi SECO-NCV7685RGB-GEVB RGB Lighting Evaluation Board provides a smart demonstration on the interior or exterior lighting reference design for the tail or ambient lights. This evaluation board aims at realizing general sequential or high-end pixelated LEDs controlling in the in-vehicle network. The SECO-NCV7685RGB-GEVB evaluation board features 16 RGB LEDs, BLUETOOTH^® 5, NCV7685 linear LED driver, RSL10 System-on-Chip (SoC) with Bluetooth Low Energy (BLE), and NCV891330 DC-DC converter. This evaluation board comes with the dynamic addressing method and access to framework Application Programming Interfaces (APIs) that facilitate the design work.

Features

Plug and Play:
- Switch and BLE mode to show animations
16 RGB LEDs (48 channels) with each current programmable sources up to 60mA
Independent PWM duty cycle control for each channel
On-chip 150Hz, 300Hz, 600Hz, and 1200Hz PWM
Logarithmic or linear independent PWM dimming
Diagnostic and protection against open load, under-voltage, and over-temperature

Dynamic addressing method for no-worries in mass production
Bluetooth 5 certified with LE 2M PHY support
-94dBm Rx sensitivity (BLE mode, 1Mbps)
-17dBm to 6dBm transmitting power range
Arm^® Cortex^®-M3 processor and LPDSP32
AEC-Q100 qualified and PPAP capable

Applications

Entry-level LED taillights
High-end pixelized LED taillight with full animation capabilities
Turn signal

Dashboard applications
In-vehicle network
AV display

onsemi SECO-NCV7685RGB-GEVB RGB Lighting Evaluation Board

Features

Applications

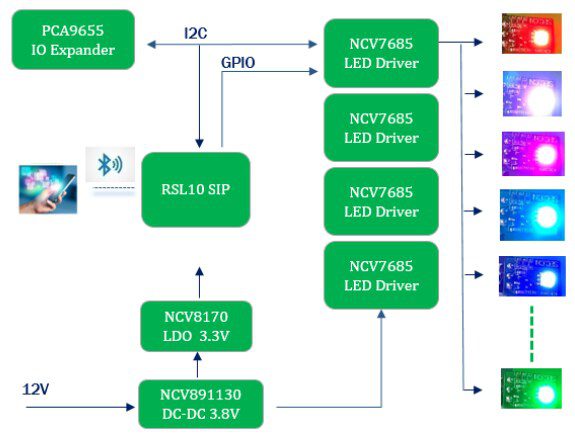

Board Architecture

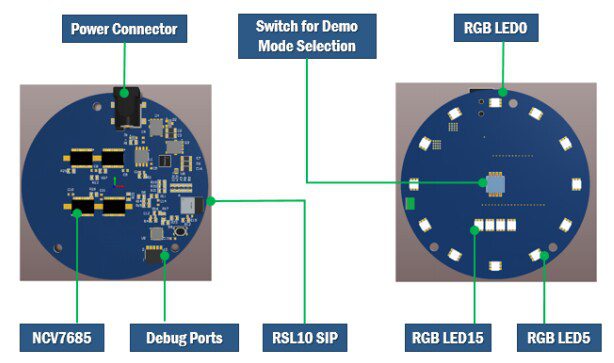

Overview
