onsemi SECO-MDK-4KW-65SPM31-GEVK Motor Development Kit

onsemi SECO-MDK-4KW-65SPM31-GEVK Motor Development Kit is designed for three-phase motor drives and features the NFAM5065L4B Intelligent Power Module in a DIP39 package. The Motor Development Kit (MDK) is rated for 400Vdc input, delivering continuous power over 1kW, with the capability of delivering up to 4kW power for a short period.

The onsemi SECO-MDK-4KW-65SPM31-GEVK MDK is fully compatible with the Universal Controller Board (UCB), based on the Xilinx^® Zynq^®-7000 SoC, which embeds FPGA logic and two Arm^® Cortex^®-A9 processors. The system is fit for high-end control strategies and enables the operation of various motor technologies (AC induction motor, PMSM, BLDC, etc.). The SECO-MDK-4KW-65SPM31-GEVK consists of the SECO-MDK-4KW-65SPM31-GEVB and the Universal Controller Board (UCB).

Features

Motor Development Kit (MDK)
- Compatible with the Universal Controller Board (UCB) FPGA/ARM
- Fully compatible with Xilinx development tools for Zynq-7000
Downloadable V/f and FOC control use cases for the UCB
4kW motor control solution supplied up to 410VDC
MDK FPGA-controller based on Xilinx Zynq-7000 SoC, including a dual 667MHz CPU Cortex A9 core with freely configurable digital peripheral, 32 Mbyte Flash, up to 1GB RAM, USB / UART / JTAG interface, on-board Ethernet phy, bootloader capability via micro SD card, 10 ADC channel, using NCD98011, and 12 complementary PWM channels, capable of delivering advanced networked motor and motion control systems
Highly integrated power module NFAM5065L4B containing an inverter power stage for a high voltage 3-phase inverter in a DIP39 package delivering

DC/DC converter producing auxiliary power supply 15VDC – non-isolated buck converter using NCP1063, DC/DC converter producing auxiliary power supply 5VDC – non-isolated buck converter using FAN8303, and LDO producing auxiliary power supply 3.3VDC – using NCP718
Three-phase current measurement using 3 x NCS20166 operational amplifiers
Three-phase inverter voltage and DC-Link voltage measurement using resistive voltage divider circuit
512kB EEPROM I²C – using CAT24C512
Encoder interface compatible with either 3-HALL sensors 1 Channel Quadrature encoder
Temperature sensing via build in thermistor
Over current protection using NCS2250 comparator
Xilinx^® development tools and environments are available for the MDK, such as Vitis and Vivado to program the FPGA

Applications

White goods
Industrial fans

Industrial automation
Industrial motor control

Resources

User Manual
Schematic Diagrams

Gerber Layout Files
GUI

onsemi SECO-MDK-4KW-65SPM31-GEVK Motor Development Kit

Features

Applications

Resources

Videos

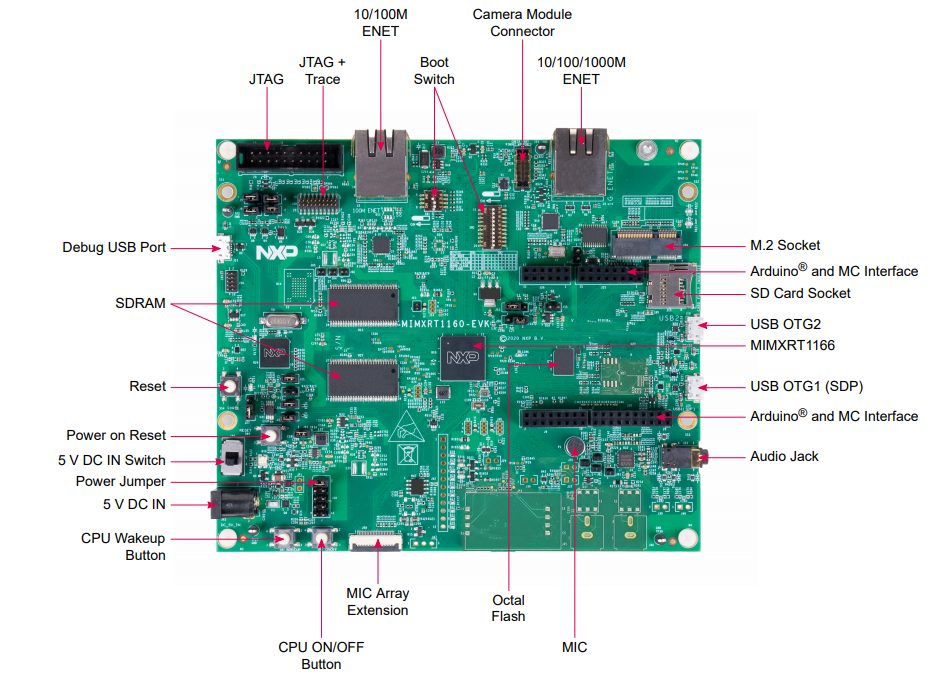

Front Board Layout

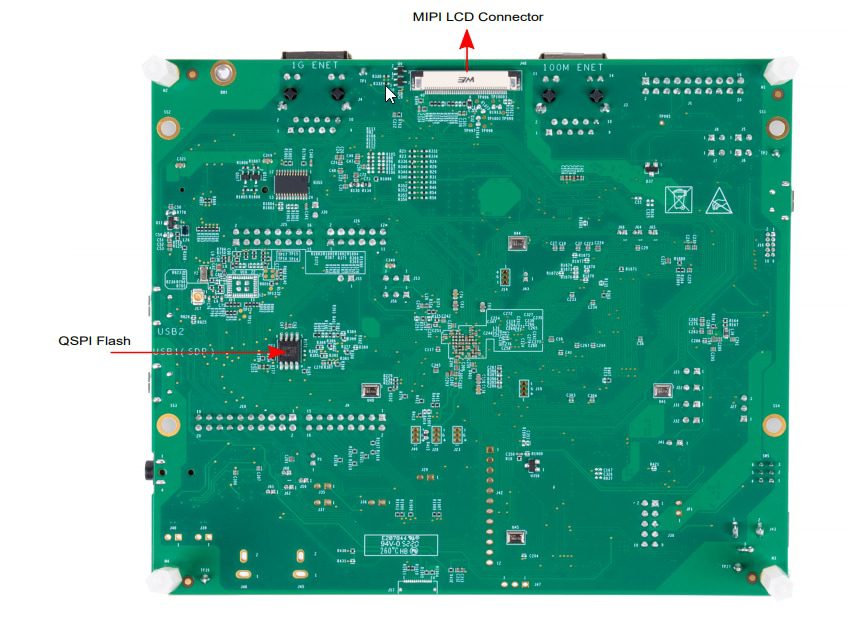

Back Board Layout

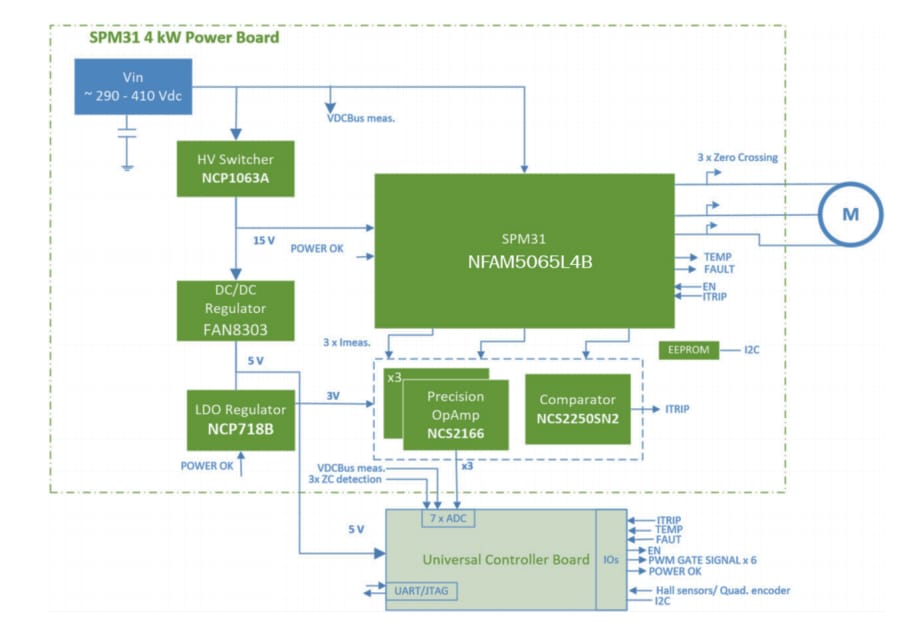

Board Block Diagram
