onsemi SECO-LVDCDC3064-SIC-GEVB Evaluation Board

onsemi SECO-LVDCDC3064-SIC-GEVB Evaluation Board features input isolated Silicon Carbide (SiC) gate driver supply with automotive-qualified NCV3064 controller. This board provides stable voltage rails of -5V / 20V and an additional 5V rail for efficient switching over 6VDC to 18VDC wide input voltage range. The NCV3064 regulator enables a low component count, compact, and robust design. The SECO-LVDCDC3064-SIC-GEVB board is pin-compatible with commercial SiC DC/DC supplies and provisions ready to use plug-in solutions for power applications. This evaluation board offers a 150kHz switching frequency, 6.4pF interwinding capacitance, and 4000VAC dielectric insulation.

Associated Products

Features

  • NCV3064 (automotive) / NCP3064 (industrial) controller
  • Operation mode DCM
  • Efficiency at full load 67%
  • Simple, robust, and low component count solution
  • Plug-in header for easy integration to boards
  • AEC-Q qualified parts

Specifications

  • 6VDC to 18VDC input voltage range
  • -5V / 5V / 20V output voltage
  • 50mA each branch output current
  • 6.4pF interwinding capacitance
  • 4000VAC dielectric insulation
  • 42μH inductance
  • 650nH leakage inductance

Applications

  • Isolated SIC driver supply
  • Automotive powertrain systems
  • Automotive auxiliary power

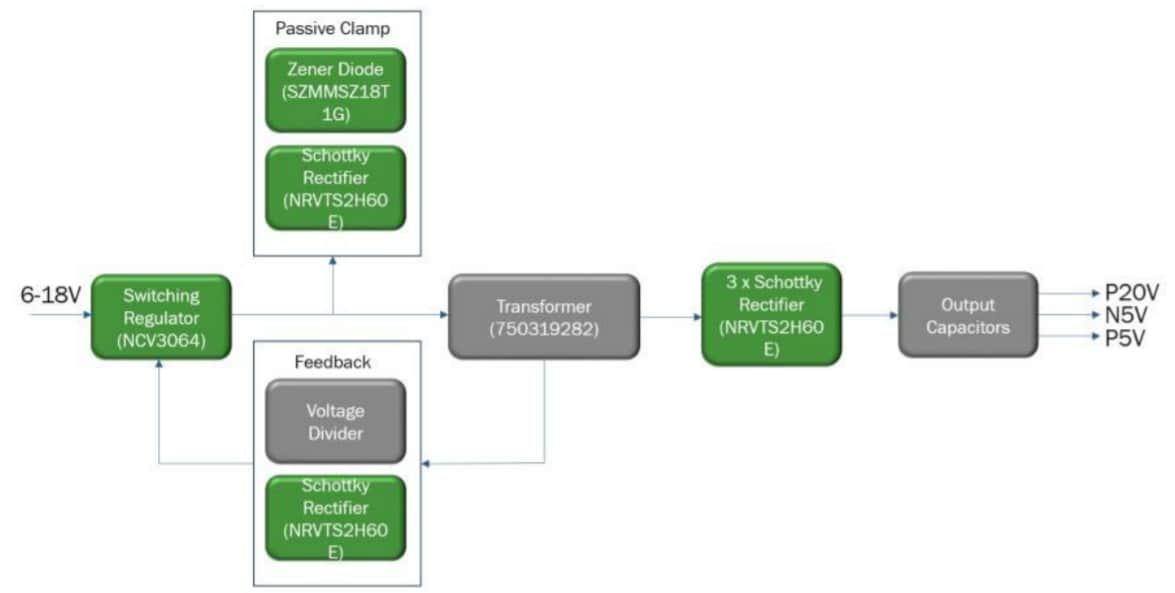

Block Diagram

Block Diagram - onsemi SECO-LVDCDC3064-SIC-GEVB Evaluation Board
