onsemi SECO-1KW-MDK-GEVK Motor Development Kit (MDK) is a complete reference design for three-phase motor drives, featuring the NFAQ1060L36T intelligent power module in a DIPS6 package and is part of the Motor Development Kit (MDK). The SECO-1KW-MDK-GEVK consists of the SECO-1KW-MCTRL-GEVB, the hardware adaptor to the UCB, and the Universal Controller Board (UCB). The SECO-1KW-MCTRL-GEVB board is fully compatible with the Universal Controller Board (UCB), based on the Xilinx® Zynq®-7000 SoC, which embeds FPGA logic and two ARM Cortex-A9 processors.

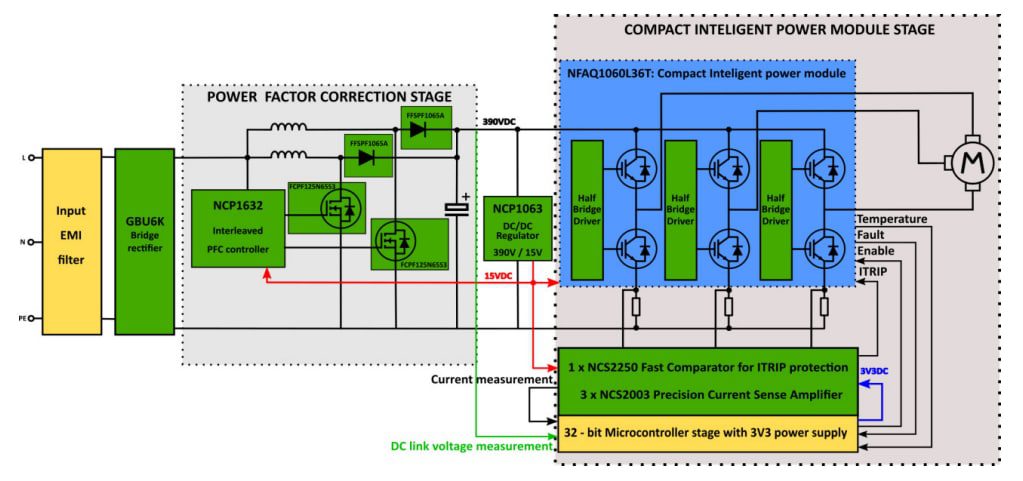

onsemi SECO-1KW-MDK-GEVK Motor Development Kit (MDK) is intended for high-end control strategies and enables the operation of various motor technologies (AC induction motor, PMSM, BLDC, etc.). All the necessary system blocks for a motor drive are part of the solution: EMC filtering and rectification stage, interleaved two-channel PFC, auxiliary power supplies, three-phase inverter, and measurement and protection.
