onsemi Power Integrated Modules (PIMs)

onsemi Power Integrated Modules (PIMs) integrate a 3-phase inverter circuit, a diode bridge circuit, and a braking circuit into a single module. PIMs are designed to maximize power delivery combined with a reduced footprint, where external control and a high voltage gate drive are required.

Common topologies utilizing onsemi PIMs include three-phase inverter stages with input bridge rectification and brakes, boost converters, and multi-level inverters.

Features

  • Full Silicon and SiC hybrid modules
  • Low thermal impedance baseplate
  • Integrated bypass diodes
  • Easy mounting
  • Reduced inductor size
  • Higher power density
  • Reduced heat sink size
  • High switching frequency and compact design

Applications

  • White goods
  • Uninterruptible power supplies
  • Electric and electro-hydraulic power steering
  • Electric water pump
  • Electric oil pump
  • Electric fan
  • Solar inverters

Videos

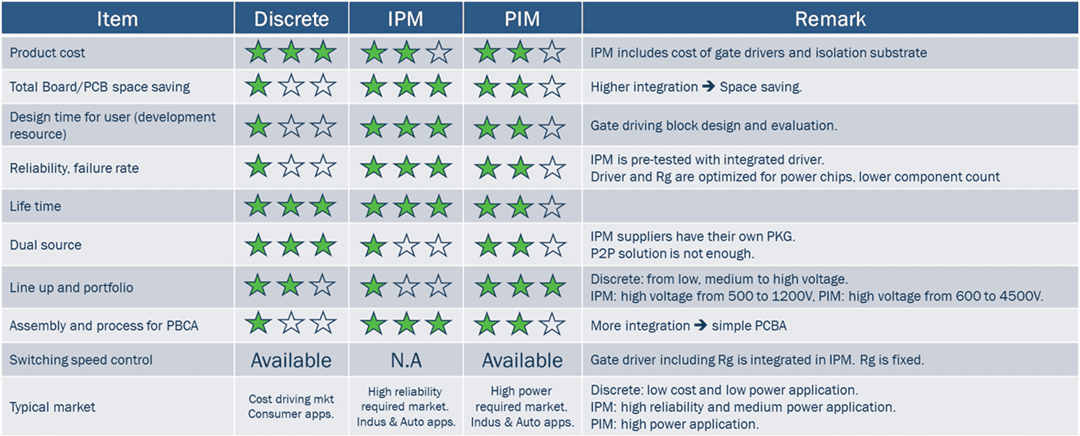

Comparison to Discrete ICs

Chart - onsemi Power Integrated Modules (PIMs)
