onsemi NXV08H350XT1 MOSFET Module

onsemi NXV08H350XT1 MOSFET Module is a dual half bridge 80V automotive power MOSFET module with temperature sensing for 48V mild hybrid automotive applications. This 2-phase power MOSFET module is electrically isolated with Direct Bond Copper (DBC) substrate for low Rthjc. The NXV08H350XT1 module is compactly designed for low total module resistance, and the small, efficient, and reliable system design reduces vehicle fuel consumption and CO₂emissions. The components inside the module are AEC-Q101 (MOSFET) and AEC-Q200 (passives) qualified. The NXV08H350XT1 power MOSFET module is ideally used in 48V inverter and 48V traction applications.

Features

2-phase MOSFET module (at the customer side, this module can be used as a half-bridge MOSFET module by combining 2-phase out power terminals)
Electrically isolated DBC substrate for low Rthjc
Compact design for low total module resistance
Simplified vehicle assembly
Low thermal resistance
Low inductance

80V (V_DS) drain to source voltage
Module serialization for full traceability
Module level AQG324 qualified:
- Components inside are AEC-Q101 (MOSFET) and AEC-Q200 (passives) qualified
UL 94V-0 compliant
Pb-free and RoHS-compliant

Applications

48V inverter
48V traction

onsemi NXV08H350XT1 MOSFET Module

Features

Applications

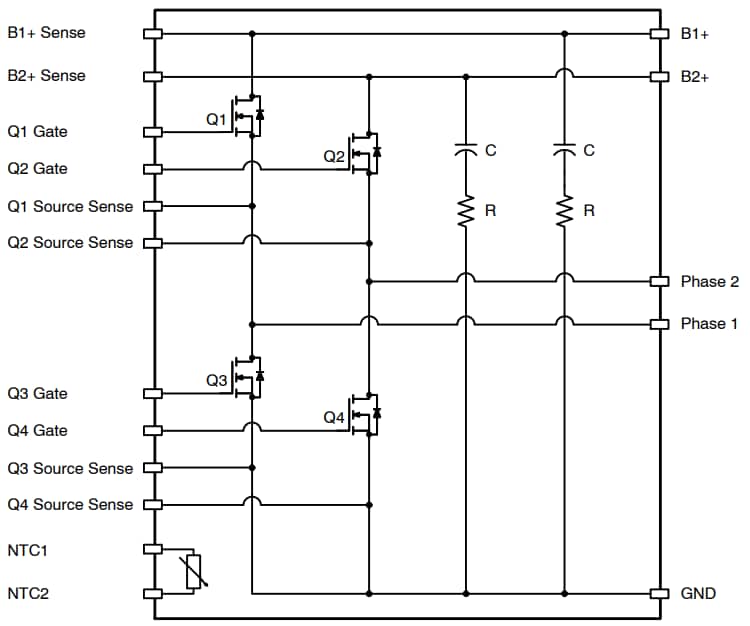

Block Diagram

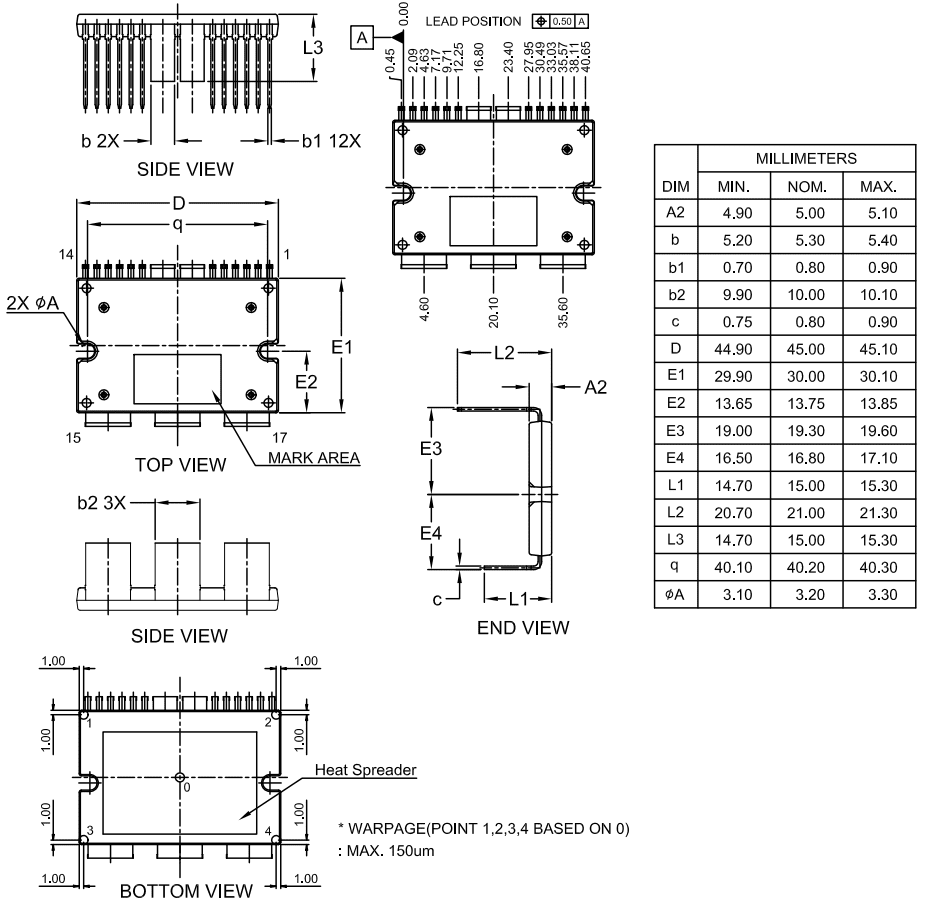

Package Dimensions
