onsemi NVXR17S90M2SPx EliteSiC Power Modules

onsemi NVXR17S90M2SPx EliteSiC Power Modules enhance efficiency, power density, and overall performance. The onsemi NVXR17S90M2SPx modules integrate a 900V SiC MOSFET in a convenient six-pack configuration. The modules feature press-fit pins for signal terminals enabling easy assembly and improved reliability. Additionally, the devices include an optimized pin-fin heatsink in the baseplate for effective heat dissipation. The die attach utilizes sintering technology to enhance reliability and thermal performance, meeting the AQG324 automotive standard.

Features

Direct cooling with integrated pin-fin heatsink
Silicon Nitride isolator
T_vj.Max = +175°C for continuous operation
Automotive grade SiC MOSFET chip technologies
Sintered die technology for high-reliability performance

Easy to integrate 6-pack topology
Automotive module AQG324 compliant
Pb-free and RoHS-compliant
Typical applications include hybrid and electric vehicle traction inverters

Applications

Converter DC battery output to power AC traction motors
High power DC-DC converters

onsemi NVXR17S90M2SPx EliteSiC Power Modules

Features

Applications

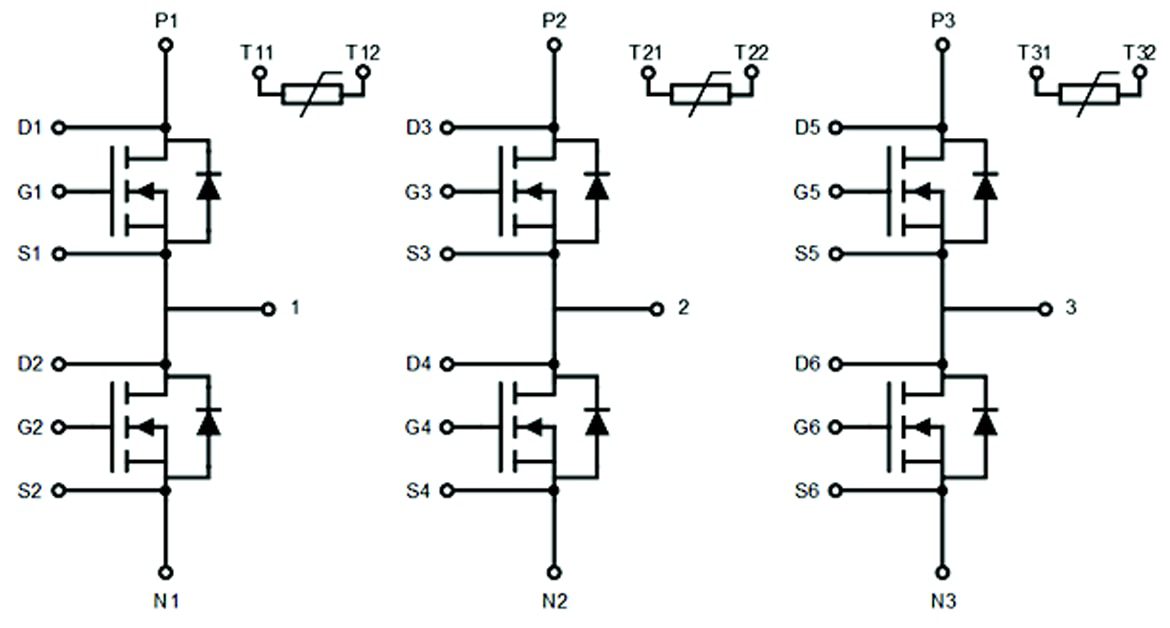

Pin Description
