onsemi NVTYS014N08HL Power MOSFET

onsemi NVTYS014N08HL Power MOSFET is an 80V, 13.9mΩ, and 40A single N-channel MOSFET built with a compact and efficient design for high thermal performance. This MOSFET features low R_DS(ON) to minimize conduction losses and low capacitance to minimize driver losses. The NVTYS014N08HL power MOSFET is AEC-Q101 qualified and is PPAP-capable. This MOSFET is suitable for reverse battery protection, power switches, switching power supplies, and other automotive applications.

Features

Small footprint (3.3mm x 3.3mm) for compact design
Low R_DS(ON) to minimize conduction losses
Low capacitance to minimize driver losses
80V drain to source voltage (V_DSS)
40A continuous drain current (I_D) @T_C = 25°C

13.9mΩ drain to source on-resistance (R_DS(on))
LFPAK33 package
AEC-Q101 qualified and PPAP capable
Pb-free and RoHS-compliant

Applications

Reverse battery protection
Power switches (like high-side drivers, low-side drivers, and H-Bridge)
Solenoid drivers

Motor control
Load switches
Switching power supplies

onsemi NVTYS014N08HL Power MOSFET

Features

Applications

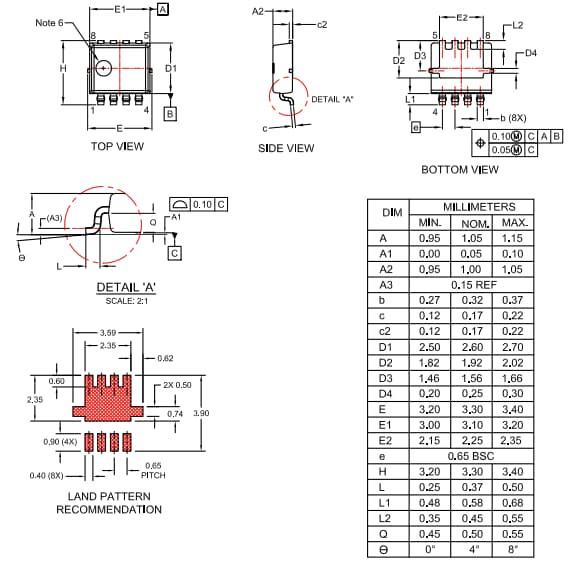

Package Dimensions
