onsemi NVMFD027N10MCL Dual N-Channel Power MOSFET

onsemi NVMFD027N10MCL Dual N-Channel Power MOSFET is a 100V, 28A, 26mΩ Automotive Power MOSFET designed for compact and efficient designs. The AEC-Q101-qualified and PPAP-capable device is housed in a 5mm x 6mm flat lead package with a wettable flank option available for enhanced optical inspection. The onsemi NVMFD027N10MCL MOSFET features high thermal performance and low R_DS(on) to minimize conduction losses.

Features

Small footprint (5mm x 6mm) for compact design
Low R_DS(on) to minimize conduction losses
Low Q_G and capacitance to minimize driver losses

AEC-Q101 qualified and PPAP capable
Pb-free, halogen-free/BFR-free, beryllium-free, and RoHS compliant

Applications

48V systems
Switching power supplies

Power switches (high-side driver, low-side driver, H-bridges, etc.)

Specifications

28A maximum continuous drain current
26mΩ at 10V and 35mΩ at 4.5V R_DS(ON) maximum
100V drain-to-source voltage
±20V gate-to-source voltage

115A pulsed drain current
-55°C to +175°C operating junction and storage temperature range

onsemi NVMFD027N10MCL Dual N-Channel Power MOSFET

Features

Applications

Specifications

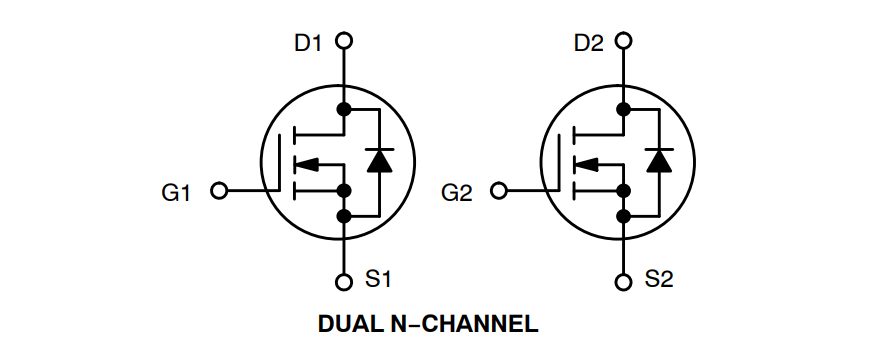

Typical Application
