onsemi NTBG022N120M3S 1200V M3S Series SiC MOSFET

onsemi NTBG022N120M3S 1200V M3S Series SiC (Silicon Carbide) MOSFET is optimized for fast switching applications and offers a low 22mΩ drain-to-source on-resistance. The M3S Series SiC MOSFETs provide optimum performance when driven with an 18V gate drive but also work well with a 15V gate drive. This device features planar technology, which works reliably with a negative gate voltage drive and turns off spikes on the gate.

The onsemi NTBG022N120M3S 1200V M3S Series SiC MOSFET is housed in a D2PAK-7L package for low common source inductance.

Features

Optimized for fast switching applications
Low switching losses
485µJ typical turn-on switching loss @ 40A, 800V
18V for best performance; 15V for compatibility with IGBT driver circuits

100% avalanche tested
Improved power density
Improved robustness to unexpected incoming voltage spikes or ringing

Applications

AC-DC conversion
DC-AC conversion
DC-DC conversion
Switch mode power supplies (SMPS)

UPS
Electric vehicle chargers
Solar inverters
Energy storage systems

Specifications

1200V drain-to-source voltage (V_DSS)
22mΩ drain-to-source on-resistance (R_DS(on))
-10V/+22V gate-to-source voltage (V_GS)
0.3V/°C drain-to-source breakdown voltage temperature coefficient (V_(BR)DSS/T_J)
100µA zero gate voltage drain current (I_DSS)
±1µA gate-to-source leakage current (I_GSS)
Continuous drain current (I_D)
- 58A @ T_C = 25°C
- 41A @ T_C = 100°C
Power dissipation (P_D)
- 234W @ TC = 25°C
- 117W @ TC = 100°C

2.04V to 4.4V gate threshold voltage; 2.72V typical (V_GS(TH))
3200pF input capacitance (C_ISS)
148pF output capacitance (C_OSS)
14pF reverse transfer capacitance (C_RSS)
18ns turn-on delay time (t_d(ON))
24ns rise time (t_r)
47ns turn-off delay time (t_d(OFF))
14ns fall time (t_f)
23ns reverse recovery time (t_RR)
-55°C to +175°C operating junction and storage temperature range (T_J, T_stg)
D2PAK7 (TO-263-7L HV) package

Resources

Datasheet
Product Overview
Whitepaper: Introduction To onsemi M3S SiC MOSFET Technology

onsemi NTBG022N120M3S 1200V M3S Series SiC MOSFET

Features

Applications

Specifications

Resources

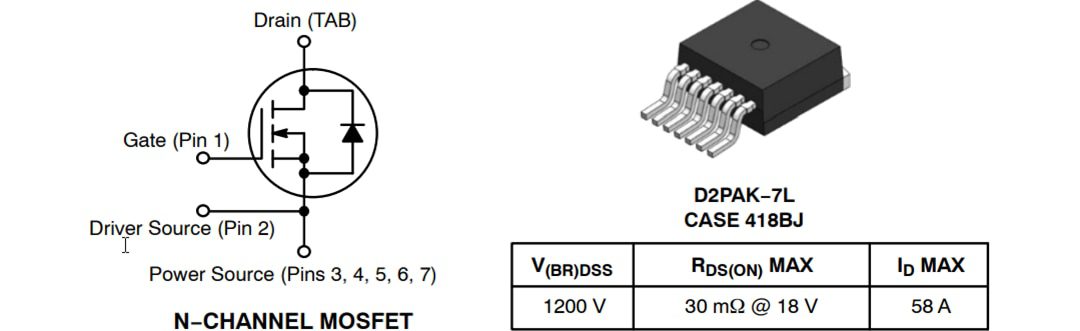

Internal Schematic
