onsemi NSVD070AL Small Signal Switching Diode

onsemi NSVD070AL Small Signal Switching Diode is a low-leakage, 70V reverse voltage common anode switching diode in a SOT-23 package. This switching diode features 200mA forward current, -65°C to 150°C junction and storage temperature range, and 3µs reverse recovery time. The NSVD070AL small signal switching diode is Pb, halogen/BFR-free, and RoHS compliant. This switching diode is AEC−Q101 qualified and PPAP capable. The NSVD070AL small signal-switching diode is ideally used for general-purpose applications.

Features

5nA reverse voltage leakage current @V_R = 50V
2 diodes in 1 package
NSV prefix for automotive and other applications requiring unique site and control change requirements:
- AEC−Q101 qualified
- PPAP capable

Pb-free
Halogen/BFR-free
RoHS compliant

Applications

General purpose
Automotive

onsemi NSVD070AL Small Signal Switching Diode

Features

Applications

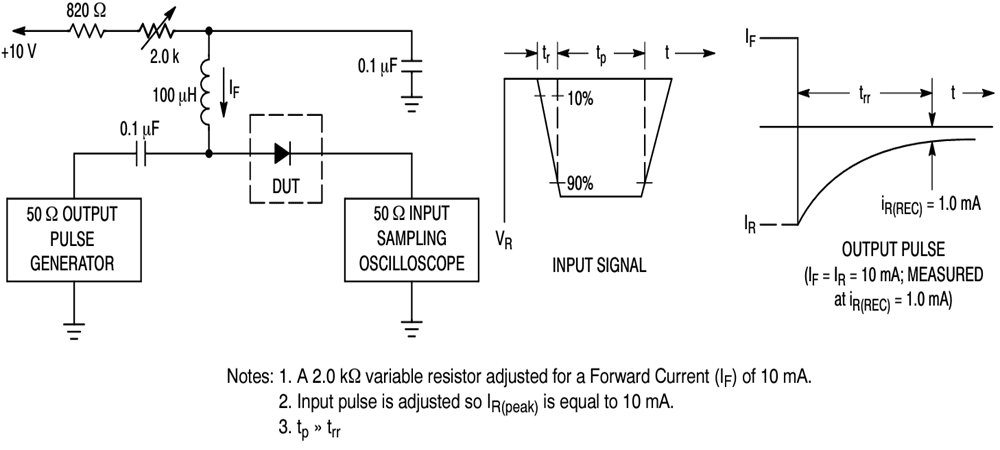

Recovery Time Equivalent Test Circuit

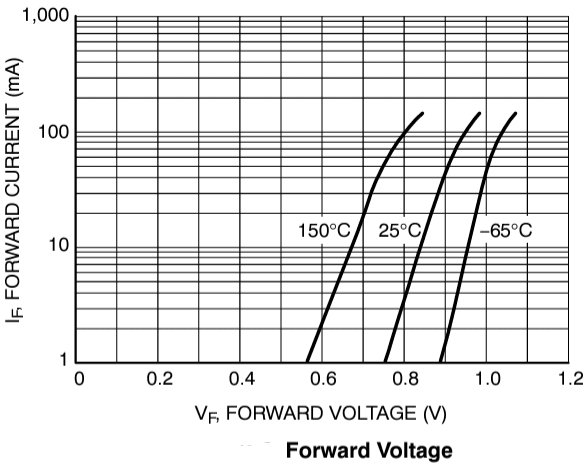

Typical Characteristic Graph

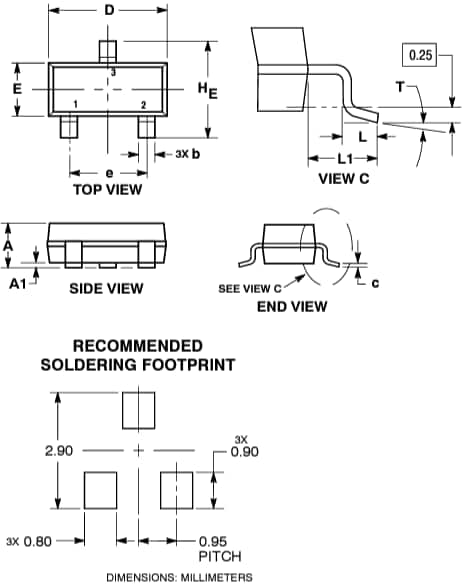

Dimension Diagram
