onsemi NST1602CL 160V 1.5A NPN Bipolar Transistor

onsemi NST1602CL 160V 1.5A NPN Bipolar Transistor is a bipolar junction transistor featuring high current, low saturation voltage, and high-speed switching. The device comes in a thin profile LFPAK8 3.3mm x 3.3mm package and has a low collector-to-emitter saturation voltage. The onsemi NST1602CL is suitable for automotive applications and is AEC-Q101 qualified and PPAP capable.

Features

  • Complement to NST1601CL
  • Large current capacitance
  • Low collector to emitter saturation voltage
  • Thin profile LFPAK8 3.3mm x 3.3mm package
  • High-speed switching
  • High allowable power dissipation
  • AEC-Q101 qualified and PPAP capable
  • These devices are Pb-Free, Halogen Free/BFR Free, and RoHS-compliant

Applications

  • Load switch
  • Gate driver buffer
  • DC-DC converters

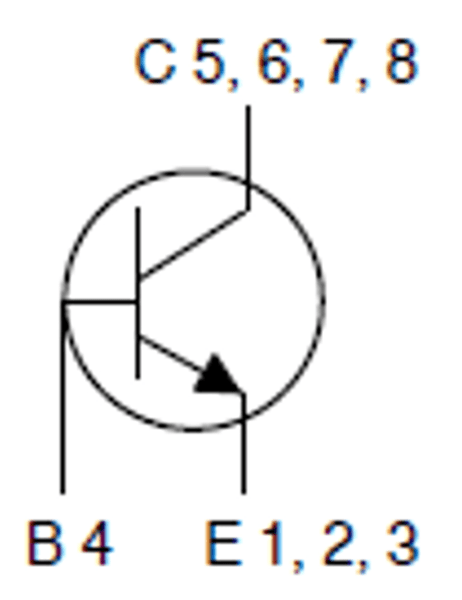

Electrical Connection

Schematic - onsemi NST1602CL 160V 1.5A NPN Bipolar Transistor
