onsemi NIS6420 eFuse

onsemi NIS6420 Electronic Fuse is a cost-effective, resettable fuse that enhances the reliability of a hard drive from catastrophic and shutdown failures. The fuse is designed to protect the downstream circuitry against an overcurrent event. It limits the current while protecting against high inrush current, and monitors load current in real-time.

Features

42m typical
Digital and tristate enable
Integrated reverse current protection
Thermally protected
Integrated soft−start circuit
Internal under-voltage lockout circuit
Internal charge pump

Load current monitor pin
ESD ratings
- Human body model (HBM); 2000V
- Charged device model (CDM); 2000V
- Latch−up; class 1
These devices are Pb−free and are RoHS compliant

Applications

Hard drives
Solid-state drives
Mother boards

Industrial
Handheld devices
Portable instruments

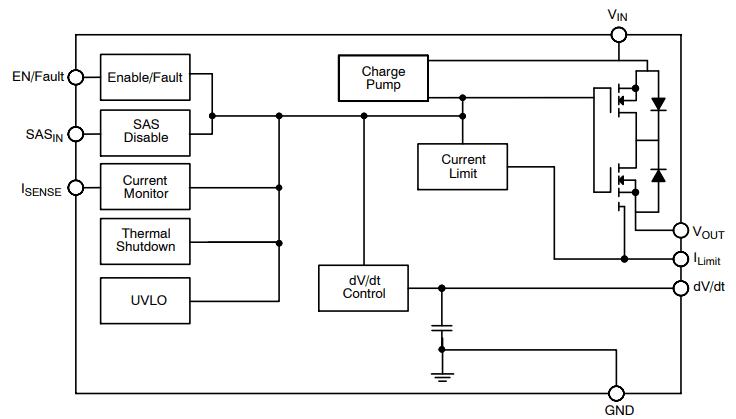

Block Diagram
