onsemi NCx575x0 Isolated Dual Channel IGBT Gate Drivers

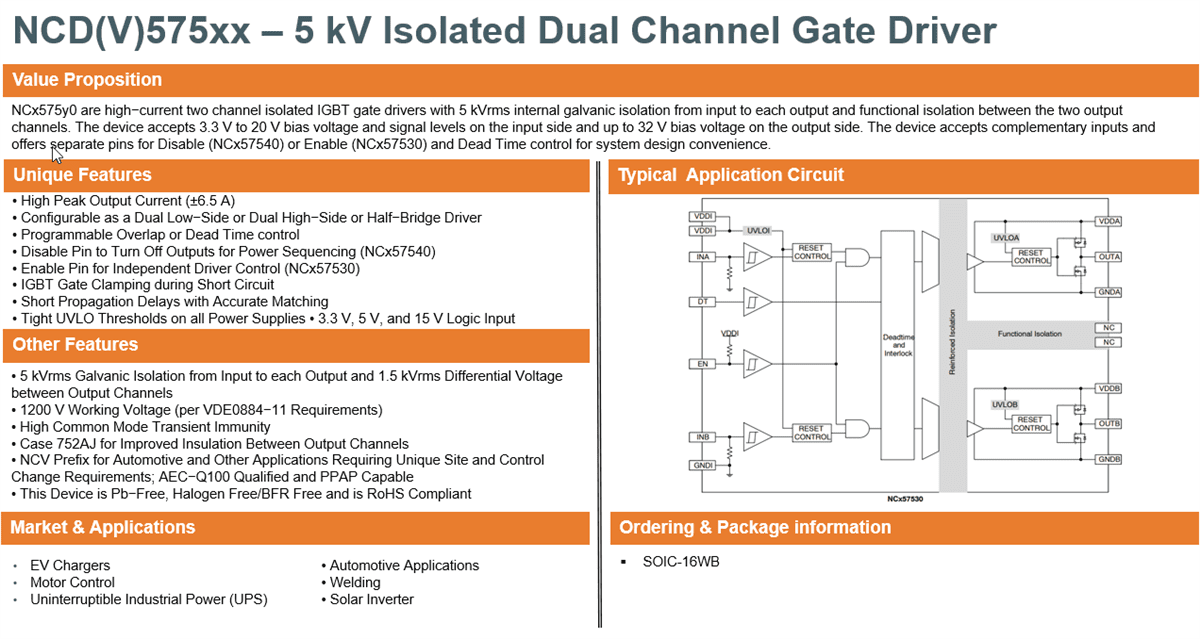

onsemi NCx575x0 Isolated Dual-Channel IGBT Gate Drivers feature 5kV_RMS internal galvanic isolation from input to each output and functional isolation between the two output channels. The NCx575x0 achieves 3.3V to 20V bias voltage and signal levels on the input side and up to 32V bias voltage on the output side.

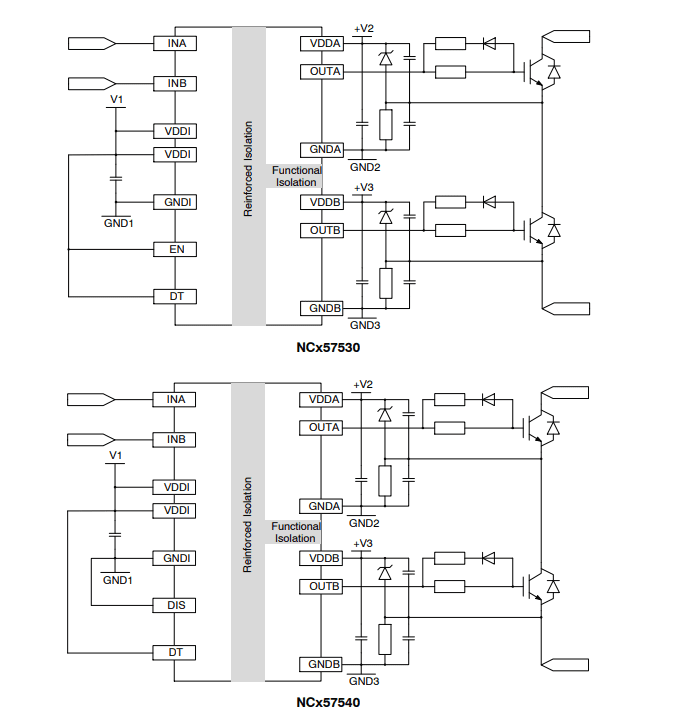

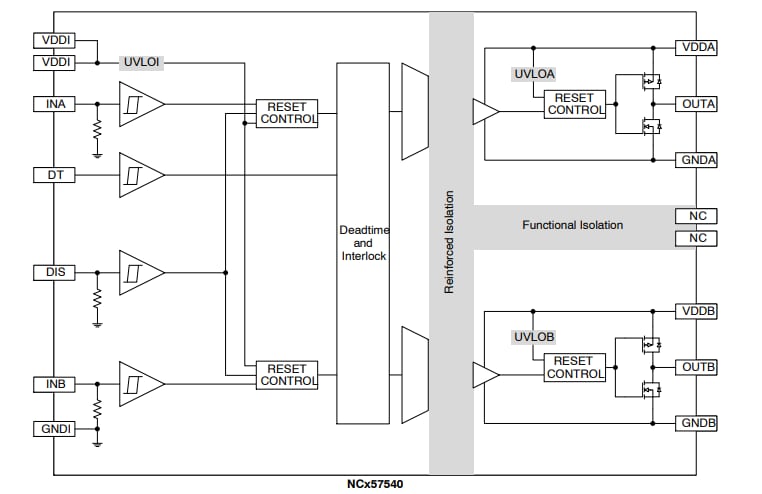

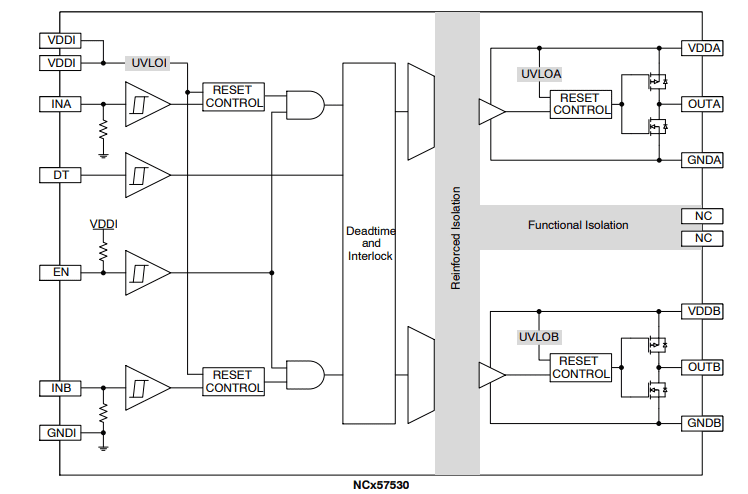

The onsemi NCx575x0 isolated dual-channel gate drivers permit complementary inputs and supply separate pins for Disable (NCx57540), Enable (NCx57530), and Dead Time control for system design convenience.

The NCx575x0 drivers are housed in a CASE 752AJ SOIC-16 wide-body package with increased insulation between channels.

Features

High peak output current (±6.5A, ±3.5A)
Configurable as a dual low-side, dual high-side, or half-bridge driver
Tight UVLO thresholds on all power supplies
2.5kV_RMS or 5kV_RMS Galvanic isolation from input to each output and 1.5kV_RMS differential voltage between output channels

Short propagation delays with accurate matching
3.3V, 5V, and 15V logic input

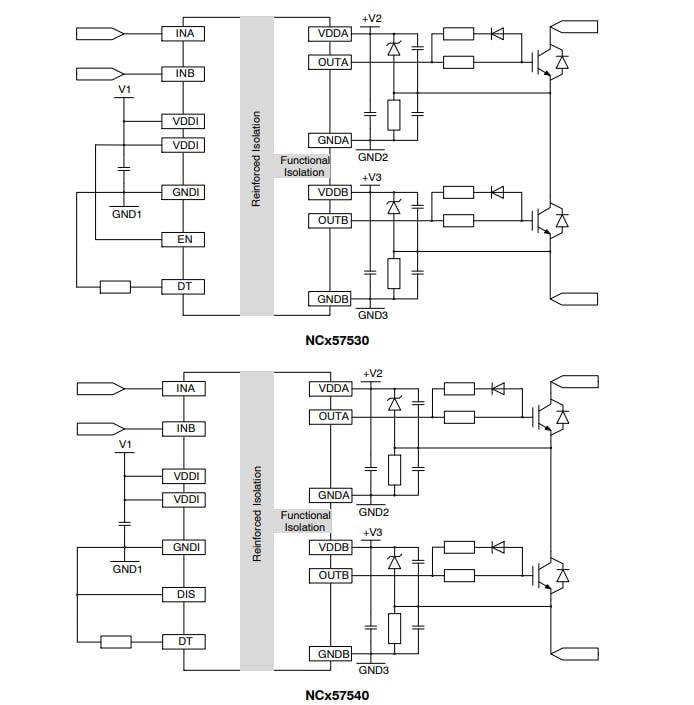

Programmable overlap or dead time control programmable overlap or dead time control
Disable/Enable pin to turn off outputs for power sequencing
IGBT Gate clamping during short circuit
