onsemi NCx57091 IGBT/MOSFET Gate Drivers

onsemi NCx57091 IGBT/MOSFET Gate Drivers are high-current single-channel drivers with 5kV_RMS internal galvanic isolation. These drivers accept complementary inputs and offer options such as active miller clamp, negative power supply, and separate high/low driver outputs for system design convenience. The IGBT/MOSFET gate drivers accommodate a wide range of input bias voltage and signal levels from 3.3V to 20V and are available in the SOIC-8 package. Typical applications include motor control, Uninterruptible Power Supplies (UPS), automotive applications, industrial power supplies, and solar inverters.

Features

Short propagation delays with accurate matching
IGBT/MOSFET gate clamping during short circuit
IGBT/MOSFET gate active pull-down
Tight UVLO thresholds for bias flexibility
High transient immunity

High electromagnetic immunity
Low clamp voltage drop eliminates the need for a negative power supply to prevent spurious gate turn-on (version A/D/F)
Pb−Free, Halogen Free/BFR Free, and are RoHS compliant

Specifications

6.5A/-6.5A high peak output current
3.3V, 5V, and 15V logic inputs
5kV_RMS galvanic isolation

1470mW power dissipation
-40°C to 150°C junction temperature range
-65°C to 150°C storage temperature range

Applications

Motor control
Uninterruptible Power Supplies (UPS)
Automotive applications

Industrial power supplies
Solar inverters

Block Diagrams

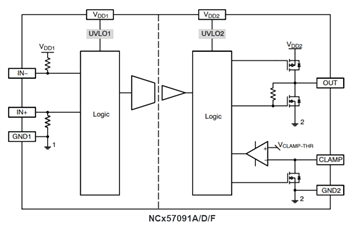

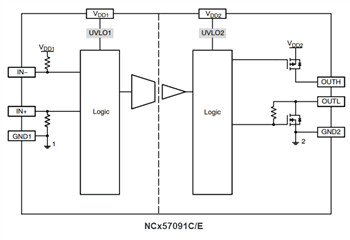

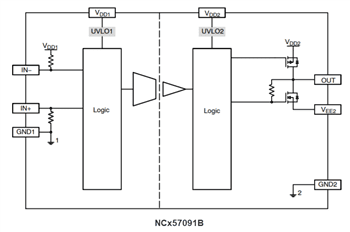

Block Diagram - onsemi NCx57091 IGBT/MOSFET Gate Drivers
