onsemi NCV8760C LDO Regulators

onsemi NCV8760C LDO Regulators offer a quiescent current as low as 18A typical, ideal for automotive applications requirements. The precision, ultra-low Iq, low dropout voltage regulator features integrated reset and delay time select, as needed for powering microprocessors.

The onsemi NCV8760C LDO Regulators are available with a fixed output voltage of 5.0V and 3.3V and regulates within ±2.0% in a DPAK 5 package.

Features

3.3V and 5V Output voltage options
±2.0% Output voltage accuracy
Output current up to 150mA
Microprocessor Compatible Control Functions:
- Delay time select
- RESET output
Low dropout voltage
Ultra-low quiescent current of 18A typical

Protection features:
- Thermal shutdown
- Current limitation
NCV Prefix for automotive and other applications requiring unique site and control change requirements; AEC−Q100
qualified and PPAP capable
EMC Compliant
Pb-Free and RoHS compliant

Applications

Automotive:
- Body control module
- Instruments and clusters
- Occupant protection and comfort
- Conventional powertrain
Battery-powered consumer electronics

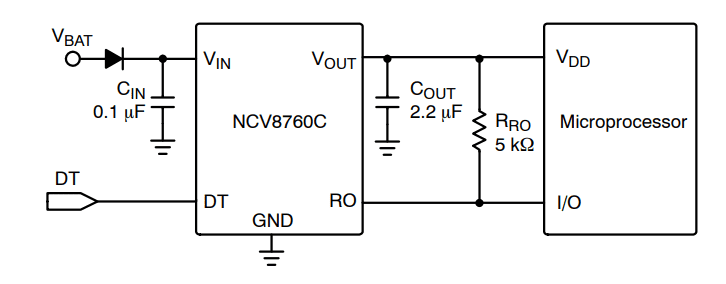

Typical Application

Application Circuit Diagram - onsemi NCV8760C LDO Regulators

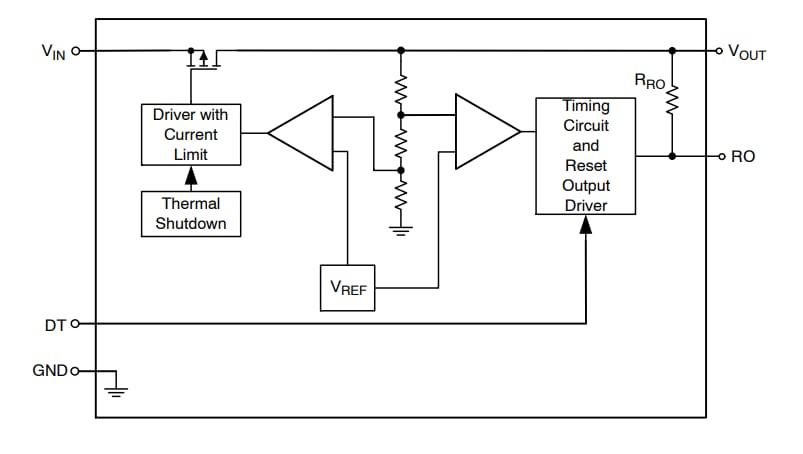

Block Diagram

Block Diagram - onsemi NCV8760C LDO Regulators
