onsemi NCV84120 Self-Protected High-Side Driver

onsemi NCV84120 Self-Protected High-Side Driver is a fully protected single-channel device designed to switch a wide variety of loads, such as bulbs, solenoids, and other actuators. The NCV84120 combines advanced protection features such as active inrush current management, over-temperature shutdown with automatic restart, and an overvoltage active clamp. A dedicated Current Sense pin supplies precision analog current monitoring of the output and fault indication of short to V_D, short circuit to ground, and OFF state open load detection. An active high Current Sense Enable pin enables all diagnostic and current sense features.

Features

Short circuit protection with inrush current management
CMOS (3V/5V) compatible control input
Very low standby current
Very low current sense leakage
Proportional load current sense
Current sense enable
Off-state open load detection
Output short to V_D detection
Overload and short-to-ground indication

Thermal shutdown with automatic restart
Undervoltage shutdown
Integrated clamp for inductive switching
Loss of ground and loss of V_D protection
ESD protection
Reverse battery protection
AEC−Q100 qualified
Pb-free device

Applications

Switch a variety of resistive, inductive, and capacitive loads
Can replace electromechanical relays and discrete circuits
Automotive/Industrial

onsemi NCV84120 Self-Protected High-Side Driver

Features

Applications

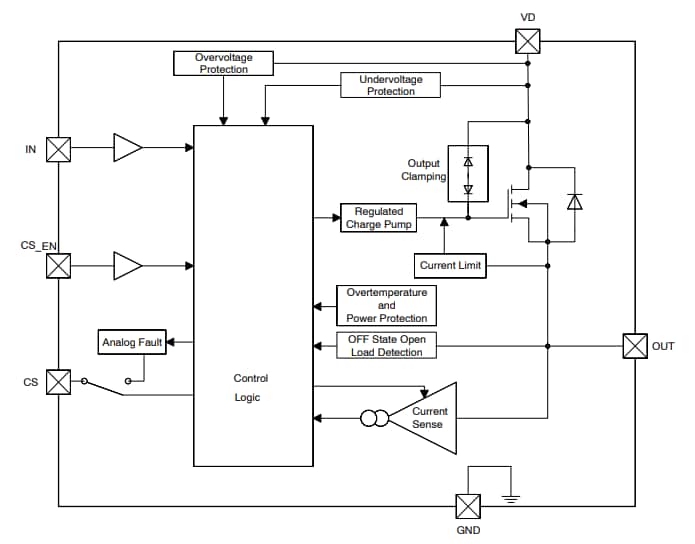

Block Diagram

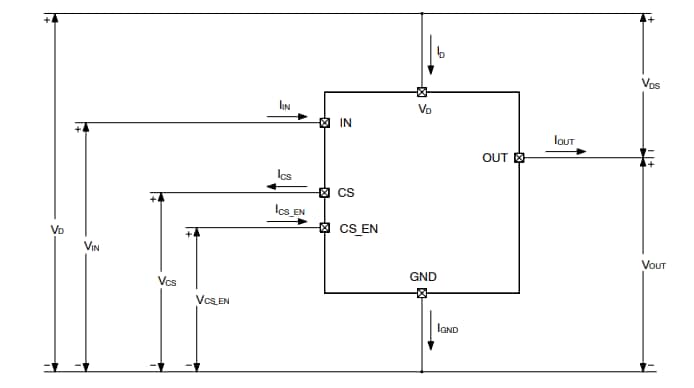

Voltage & Current Conventions
