onsemi NCP51563 Gate Drivers

onsemi NCP51563 Gate Drivers are isolated dual-channel drivers designed for fast switching to drive power MOSFETs and SiC MOSFET power switches. These drivers offer short and matched propagation delays. The NCP51563 gate drivers feature a 4.5A peak source and 9A peak sink output current capability. These gate drivers operate at -40°C to 150°C junction temperature range. The NCP51563 drivers can be used in possible configurations of two low-side, two high-side switches, or a half-bridge driver with programmable dead time. These drivers feature protection functions such as independent under-voltage lockout for gate drivers and a dead time adjustment function. Applications include motor drives, isolated converters in DC/DC and AC/DC power supply, servers, telecom, industrial infrastructures, and UPS and solar inverters.

Features

Flexible:
- Dual low-side, dual high-side, or half-bridge gate driver
4.5A peak source, 9A peak sink output current capability
Independent UVLO protections for both output drivers
Output supply voltage from 6.5V to 30V with 5V and 8V for MOSFET, 13V and 17V UVLO for SiC, thresholds
Common Mode Transient Immunity (CMTI) > 200V/ns
Propagation delay typical 36ns with:
- 5ns maximum delay matching per channel
- 5ns maximum pulse-width distortion
User programmable input logic:
- Single or dual-input modes via ANB
- ENABLE or DISABLE Mode

User programmable dead-time
Isolation and safety:
- 5kV_RMS isolation for 1 minute (per UL1577 requirements)
- 8000 VPK reinforced isolation voltage (per VDE0884−11 requirements)
- CQC certification per GB4943.1−2011
- SGS FIMO certification per IEC 62386−1
Pb-free devices

Applications

Motor drives
Isolated converters in DC/DC and AC/DC power supply

Server, telecom, and industrial infrastructures
UPS and solar inverters

onsemi NCP51563 Gate Drivers

Features

Applications

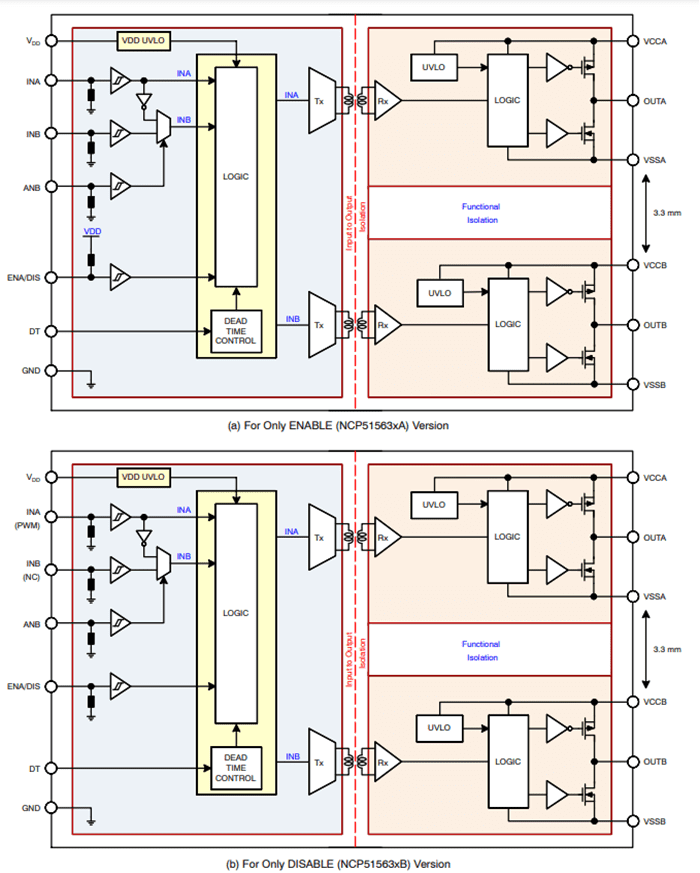

Block Diagram

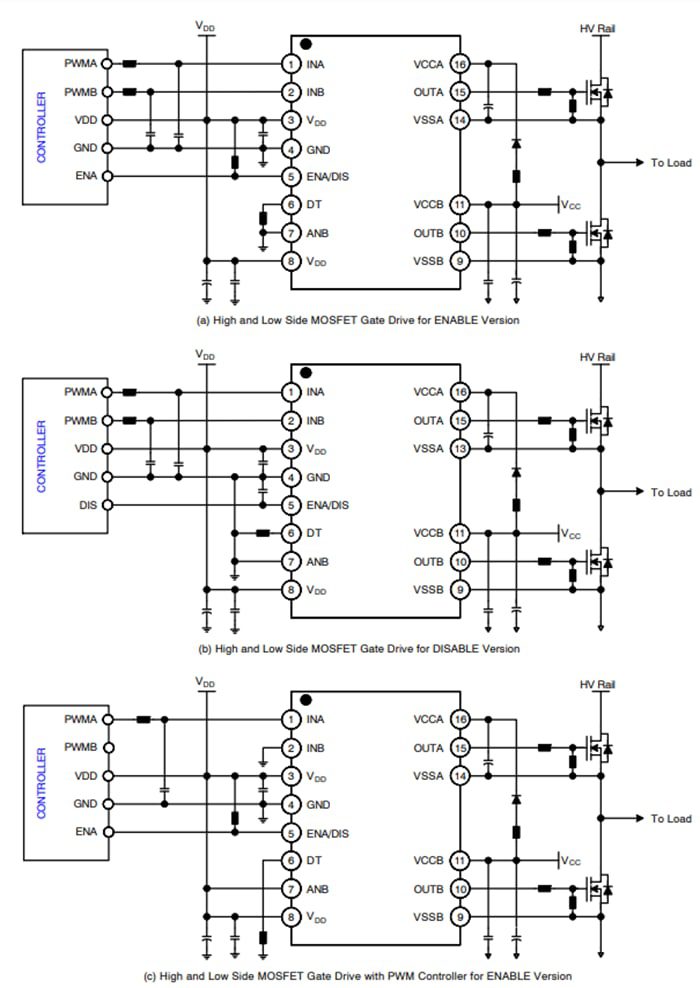

Typical Application Diagram
