onsemi NCP51313 Gate Drivers

onsemi NCP51313 Gate Drivers are high-performance 130V high-side drivers designed for DC-DC power supplies and inverters. The onsemi NCP51313 has a robust 2.0A source and 3.0A sink drive capability. The device excels in delivering efficient power at high frequencies. Boasting best-in-class features, including low quiescent current and low switching current, the NCP51313 ensures optimal performance.

Features

2.0A/3.0A current capability
Very fast propagation delay (typ. 20ns for B version)
High dv/dt immunity up to 50V/ns and negative transient immunity

Applications

DC-DC converters
Class-D audio amplifiers
Motor controls

onsemi NCP51313 Gate Drivers

Features

Applications

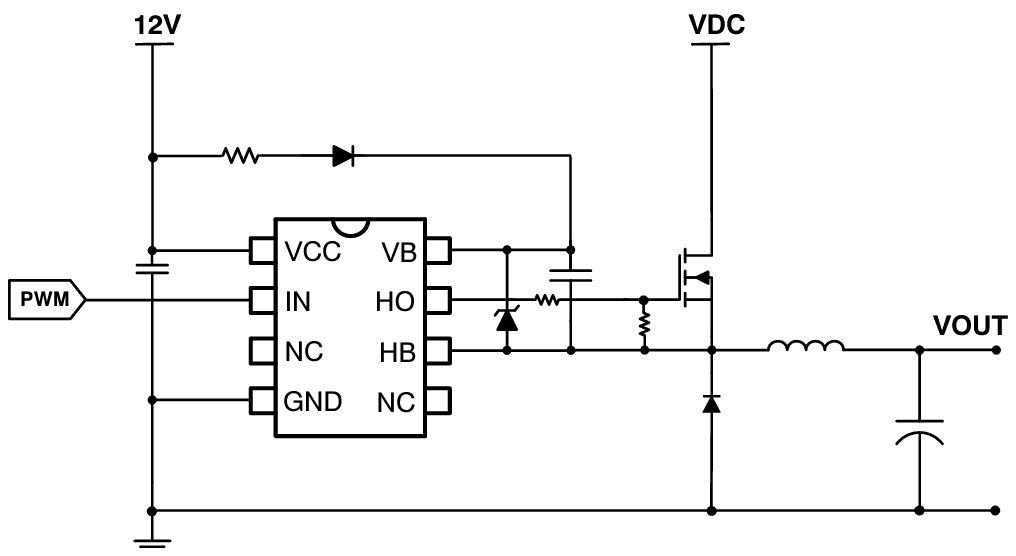

Typical Application Schematic
