onsemi N24C08 EEPROM Memory

onsemi N24C08 EEPROM Memory supports the standard (100kHz), fast (400kHz), and fast-plus (1MHz) I²C protocol. This N24C08 EEPROM includes an 8Kb I²C and US 8-lead package device that is organized internally into 64 pages of 16 bytes each. The EEPROM writes 1 to 16 contiguous bytes into a page write buffer and then writes all data to non-volatile memory in one internal write cycle. This N24C08 EEPROM reads data by starting address, then shifts out data serially, automatically incrementing the internal address count. The EEPROM memory is automotive AEC-Q100 grade 1 qualified. Typical applications include data and code storage, automotive systems, modems/wireless LANs, industrial controls, printers, and set-top boxes.

Features

Supports standard, fast, and fast-plus I²C protocol
1.7V/1.6V to 5.5V supply voltage range
16-byte page write buffer
4ms maximum fast write time
Hardware write protection for entire memory
Schmitt triggers and noise suppression filters on I²C bus inputs (SCL and SDA)
Low-power CMOS technology

More than 1,000,000 program/erase cycles
100-year data retention
Industrial and automotive grade 1 temperature range
US 8-lead package
Pb and halogen/BFR free
RoHS compliant

Applications

Parameters and configuration non-volatile storage
Data and code storage
Automotive systems
Modems/Wireless LANs

Industrial controls
Printers
Set-top box

onsemi N24C08 EEPROM Memory

Features

Applications

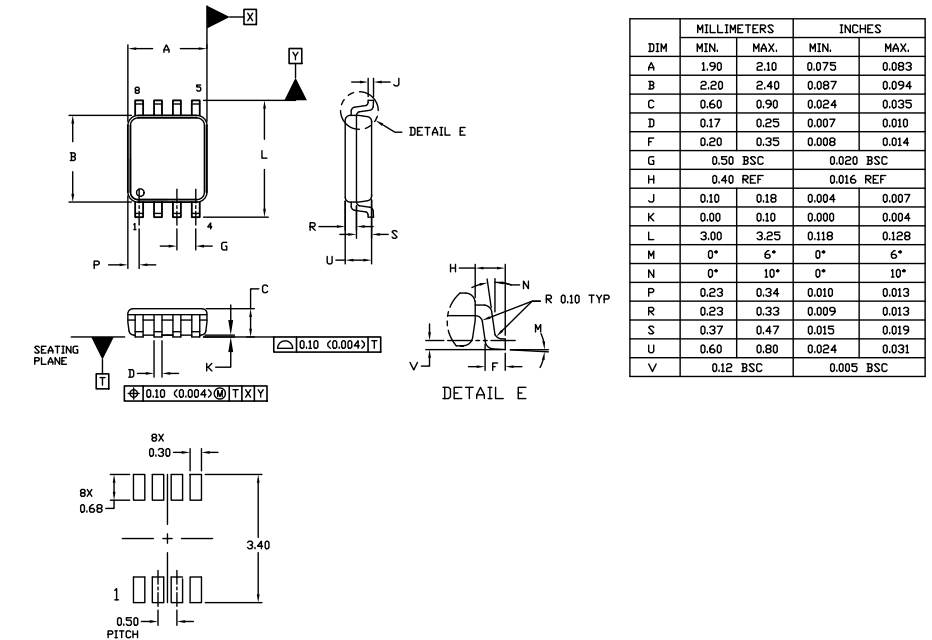

Mechanical Diagram
