onsemi FUSB15201 Dual Port USB Type-C™ & PD Controllers

onsemi FUSB15201 Dual Port USB Type-C™ and PD Controllers are ideal for power management in automotive and industrial applications. The onsemi FUSB15201 is a complete solution for USB power through optimized hardware peripherals with fully open-source embedded firmware. The open-source embedded firmware solution draws inputs from various hardware peripherals. System-level USB-PD identifiers provide optimal power sharing across ports while staying within total power.

Features

Small footprint dual-port USB PD controller supporting popular peripherals
- USB PD 3.1 and USB Type-C 2.1
- I²C master/slave
- Dual USB BC1.2 provider emulation
Fully programmable and upgradable open-source firmware providing API for specific device policy manager development

High-voltage protection on CC and D+/− pins
Supports firmware upgrades via USB Type-C
10-bit ADC for accurate monitoring of V_BUS, external temperature, and voltages
External temperature monitoring via NTC resistors
24-pin QFNW package (4mm x 4mm, 0.5mm pitch)
Grade 2 AEC-Q100 qualified
These are Pb-free devices

Applications

Automotive
Power outlets
Wall chargers

onsemi FUSB15201 Dual Port USB Type-C™ & PD Controllers

Features

Applications

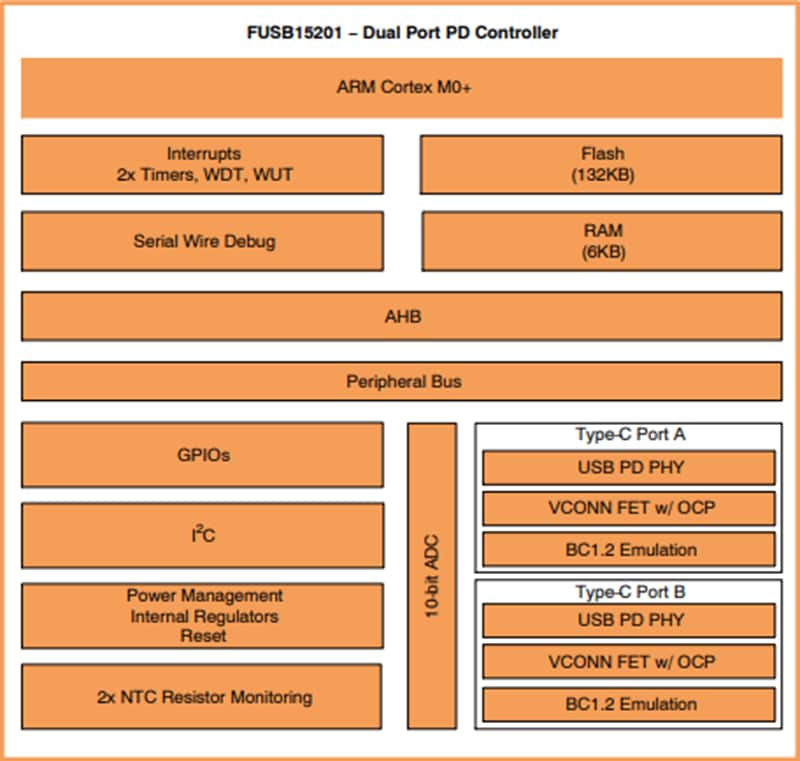

Block Diagram
