onsemi FUSB15200 Dual Port USB Type-C™ & PD Controllers

onsemi FUSB15200 Dual Port USB Type-C™ and PD Controllers are designed to excel in Sink and DRP applications. The onsemi FUSB15200 features seamless integration of hardware peripherals and open-source embedded firmware. The device is a comprehensive solution that efficiently manages system power budgets through hardware and firmware components. Designers can tailor firmware for application needs through an API for embedded firmware. The FUSB15200 is also a USB PD3.1-compliant solution with interoperability.

Features

Small footprint dual-port USB PD controller supporting popular peripherals
- USB PD 3.1 and USB Type-C 2.1
- 4x I²C host/device
- Dual USB BC1.2 consumer/provider
- USB2.0 isolation switches
Fully programmable and upgradable open-source firmware providing API for customer-specific device policy manager development

Integrated LDOs from V_BUS allow dead-battery functionality
High-voltage protection on CC and V_BUS pins (28VDC)
Up to 20 GPIOs
10-bit ADC for high-performance system measurements
External temperature monitoring via NTC resistors
DisplayPort® HPD signal conversion
FastRole swap support
40-pin QFN package (5mm x 5mm, 0.4mm pitch)
These are Pb-free devices

Applications

Sinks and DRP devices
Laptops
Docks

onsemi FUSB15200 Dual Port USB Type-C™ & PD Controllers

Features

Applications

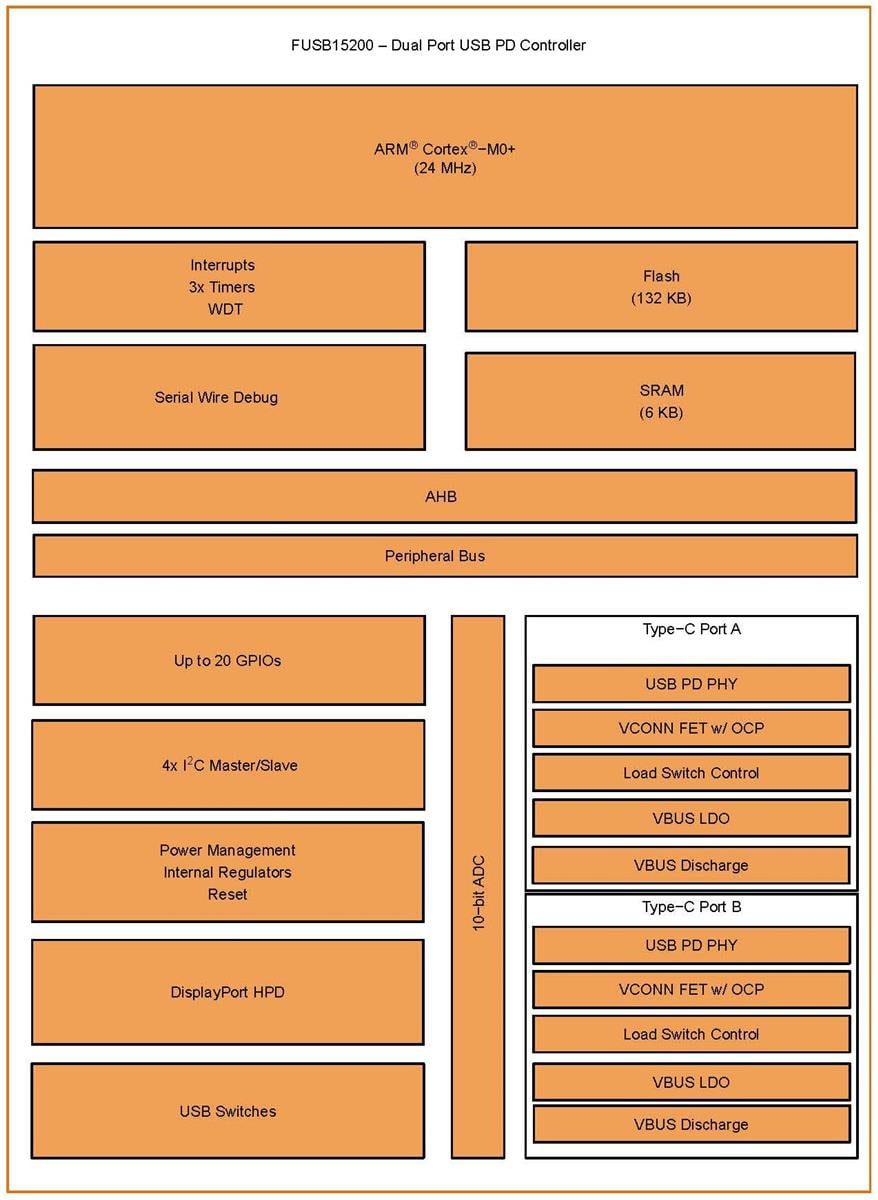

Block Diagram
