onsemi ESD7424 ESD Protection Diodes

onsemi ESD7424 ESD Protection Diodes safeguard voltage-sensitive components with ultra-low capacitance from ESD and transient voltage events. The onsemi ESD7424 has industry-leading capacitance linearity, especially in RF applications. The device’s compact design and minimal insertion loss make it excellent for antenna line applications in wireless handsets and terminals.

Features

Industry-leading capacitance linearity over voltage
Ultra-low capacitance < 1.0pF max
0.1dB at 1GHz; 0.50dB at 3GHz insertion loss
Protection for IEC standards
- IEC61000−4−2 (ESD): Level 4 ±30kV contact
- ISO 10605 (ESD) 330pF/330 ±30kV contact

< 1A low leakage
SZ prefix for automotive and other applications requiring unique site and control change requirements
AEC-Q101 qualified and PPAP capable
Pb-free, Halogen-free/BFR-free, RoHS compliant

Applications

RF signal ESD protection
Automotive antenna ESD protection

Near Field Communications
USB 2.0, USB 3.0

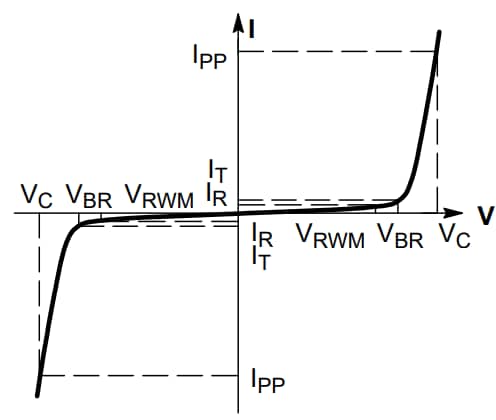

Bi−Directional TVS
