onsemi ESD1014 ESD Protection Diodes

onsemi ESD1014 ESD Protection Diodes are engineered for safeguarding high-speed data lines from ESD, EFT, and lightning. onsemi ESD1014 boasts a low capacitance of 6pF maximum between I/O lines and ground. The device provides robust protection with an ESD rating of Class 3B (exceeding 8kV) per Human Body model and Class C (exceeding 400V) per Machine Model. Compliant with IEC standards, including IEC 61000-4-2 (ESD) Level 4 at 30kV (Contact), the ESD1014 ensures reliable performance.

Features

Low capacitance (6pF maximum between I/O lines and GND)
ESD rating of Class 3B (exceeding 8kV) per Human Body model and Class C (exceeding 400V) per Machine Model
Protection for the following IEC standards
- IEC 61000−4−2 (ESD) Level 4 − 30kV (contact)

SZ prefix for automotive and other applications requiring unique site and control change requirements
AEC−Q101 Qualified and PPAP capable
This is a Pb-free device

Applications

High-speed communication line protection
USB 1.1 and 2.0 power and data line protection
Digital Video Interface (DVI)
Monitors and flat panel displays

T1/E1 and T3/E3
10/100/1000 Ethernet protection
Gigabit Ethernet protection

onsemi ESD1014 ESD Protection Diodes

Features

Applications

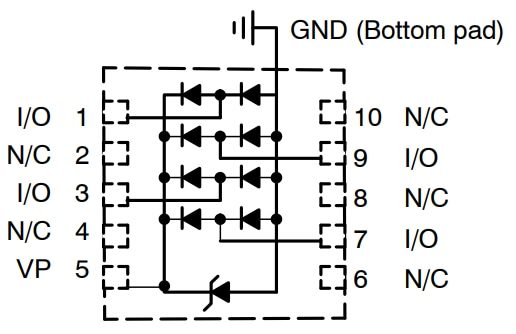

PIN CONFIGURATION AND SCHEMATIC
