onsemi ECS640A Sensorless BLDC ecoSpin Motor Controller

onsemi ECS640A Sensorless BLDC ecoSpin Motor Controller is a 3-phase BLDC configurable motor control system. The controller integrates an ultra-low-power optimized Arm® Cortex-M0+ microcontroller (Nebo-40-64), three sense amplifiers, and a reference amplifier (NCS20034). The device has three bootstrap diodes and a high-voltage gate driver for high-speed operation. The ECS640A can drive MOSFETs and IGBTs operating up to 600V (FAN73896).

Features

Arm® Cortex-M0+ (Nebo-40-64)
- 40MHz clock frequency
- 8kB RAM
- 64kB flash memory
600V gate driver (FAN73896)
- 350mA/650mA sourcing/sinking current driving capability

4 sense amps for current sensing (NCS20034)
Integrated bootstrap diodes
Communication I²C, UART, and SPI
Firmware available, sensorless direct torque and flux control
1.8W max. power dissipation
-40°C to +105°C temperature range
Lead free

Applications

Three-phase brushless DC (BLDC) sensorless motor control
Three-phase brushless DC (BLDC) sensor based motor control

onsemi ECS640A Sensorless BLDC ecoSpin Motor Controller

Features

Applications

Videos

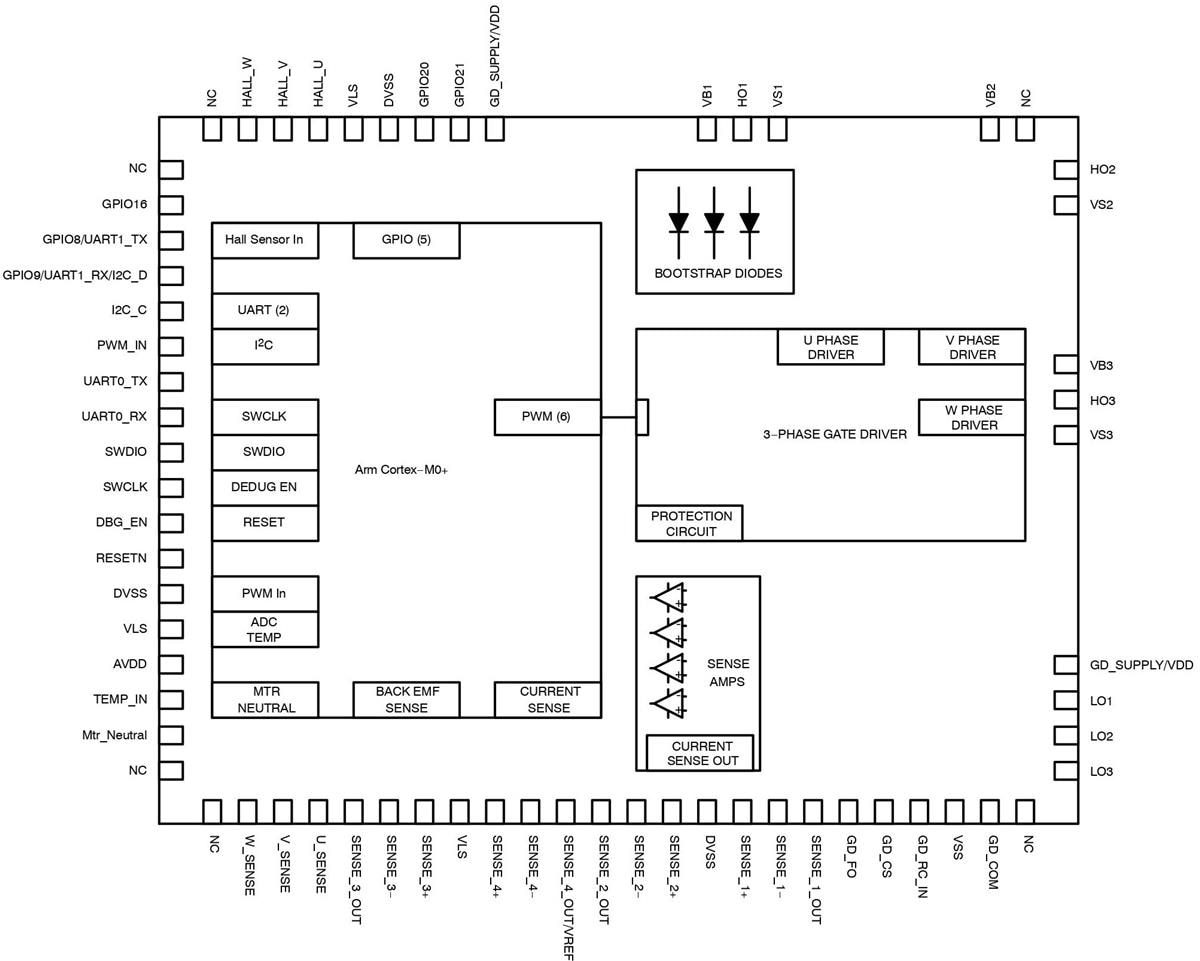

Block Diagram
