Omron Industrial Automation S133 UVC Color CMOS Cameras

Omron Industrial Automation S133 UVC Color CMOS Cameras are compact and lightweight for easy integration into machines. These high-sensitivity cameras feature USB3.0 USB Video Class 1.1 compliance, 1/3.2″ 1.27M CMOS sensor size, 1.3MP resolution, and 60fps frame rate. The series is offered with an infrared (IR) cut filter or dual-pass filter. Camera functions include gain, shutter, color adjustment, flip image, and day / night. Omron Industrial Automation S133 UVC Color CMOS Cameras can also correct lens vignetting and distortion, shading, and pixel blemishes.

Features

Compact and lightweight camera for integration into machines
Equipped with high-sensitivity sensors
IR cut filter or dual-pass filter
Board or cased variants
Gain, shutter, and color adjustment functions
Flip image function
Day / night function

Lens vignetting and distortion correction
Shading correction
Pixel blemish correction
Wide dynamic range (ATR-EX) and defog function
Onscreen character display (OSCD) is available for parameters configuration (OSD)

Specifications

1/3.2″ 1.27M CMOS sensor (Sony, ISX017)
60fps frame rate

1.3MP resolution
USB3.0 USB Video Class 1.1 compliant

Omron Industrial Automation S133 UVC Color CMOS Cameras

Features

Specifications

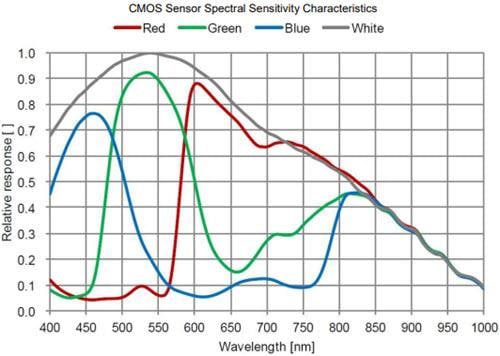

Spectral Sensitivity
