Omron Electronics G9KB High-Voltage Switching Relays

Omron Electronics G9KB High-Voltage Switching Relays are high-power DC PCB relays with bidirectional 600V_DC capacity and 50A switching. The Omron Electronics G9KB PCB Relays feature low contact resistance and low coil power consumption. The series features a +85°C ambient temperature and 12V_DC or 24V_DC rated coil voltage. Applications include DC household and commercial appliances, energy storage systems, and the energy industry.

Features

High-power PCB relay
Achieves 600V_DC capacity, 50A switching, and bidirectional opening and closing
Low contact resistance and low coil power consumption
+85°C ambient temperature

3.6mm or more contact gap
12V_DC or 24V_DC rated coil voltage
≤5mΩ initial contact resistance
UL 60947-4-1 and EN 61810-10-certified (required for ESS switching devices)

Applications

Energy storage systems
Energy industry

Vehicle-to-everything (V2X)
DC household and commercial appliances

Omron Electronics G9KB High-Voltage Switching Relays

Features

Applications

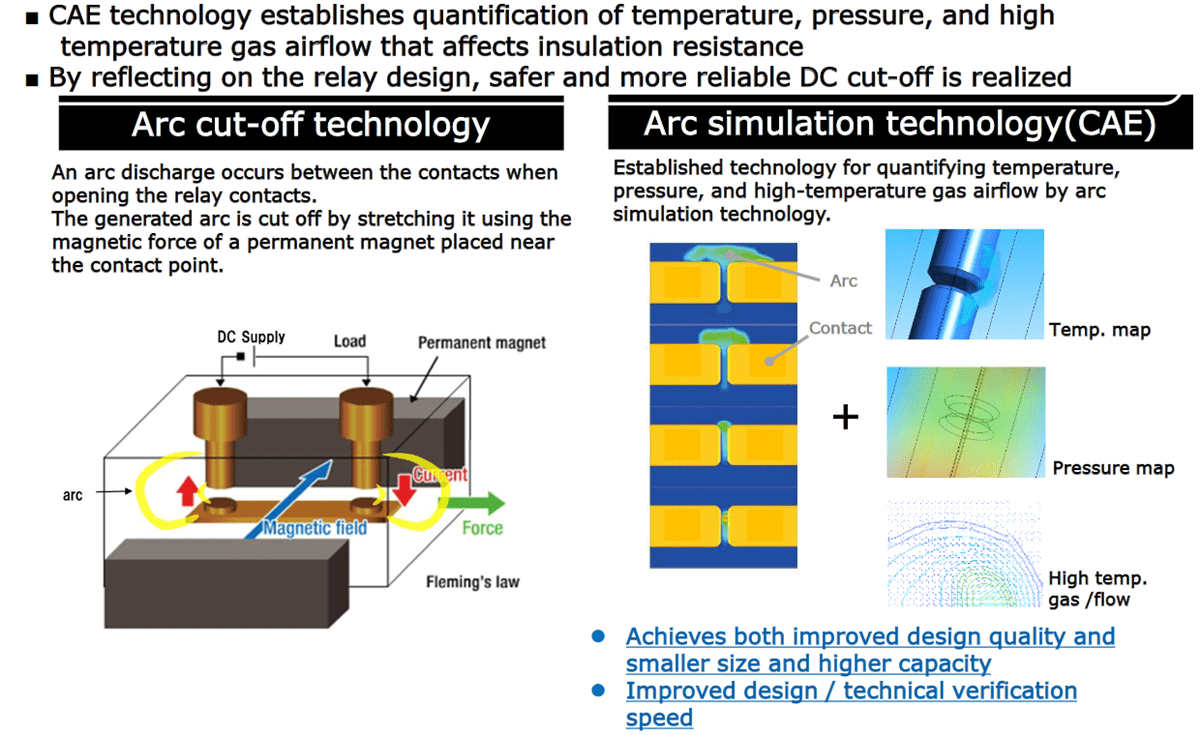

CAE Technology
