Omron Electronics G8PM High-Power PCB Relay

Omron Electronics G8PM High-Power PCB Relay is designed for automotive and 12V_DC applications and features high carry and switching currents within a small PCB package. Omron G8PM PCB Relay supports up to 150A in-rush with an 80A break. This compact relay allows high-density mounting and downsizing of equipment. PCB terminal type relays are ideal for transitioning from older plug-in relay technology.

Features

Replaces mini ISO plug-in type relay
Small size and high heat resistance enable use in engine rooms
Up to 150A in-rush with an 80A break
Supports 60A fuse

45A at 12V_DC 10,000 operations
-40°C to +125°C operating temperature range
PIP reflow compliant
RoHS compliant

Applications

Automotive DC
- Smart junction boxes
- Main power
- Radiator fans
- Electrical power steering
- DC/DC converters
- Headlamps

General DC power
Energy
Mobility

Specifications

53.3mA rated current
225Ω coil resistance
7.2V maximum must-operate voltage

0.8V minimum must-release voltage
10V to 16V permissible voltage range
640mW rated power consumption

Omron Electronics G8PM High-Power PCB Relay

Features

Applications

Specifications

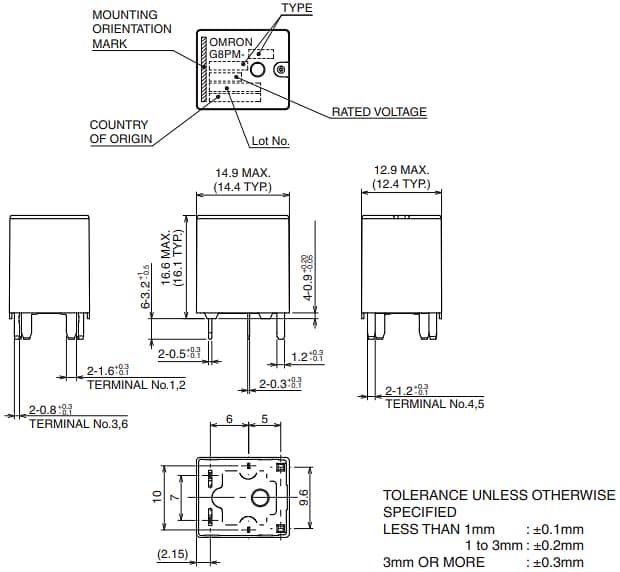

Dimensions
