Omron Electronics G8K Miniature Power PCB Relays

Omron Electronics G8K Miniature Power PCB Relays offer single and twin SPST-NO options for 12V_DC loads. The small size of these relays allows high-density mounting and downsizing of equipment. The components provide an optimized footprint for ease of board design. Omron G8K relays are designed to allow for a transition from older plug-in relay technology. Low operating voltage models ensure reliable switching performance in the event of a voltage drop.

Features

25A at 12V_DC (NO), 100k operations resistive load rating
+125°C maximum operating temperature for high design flexibility
1x Form C package or a 2x Form C (independent) package

PCB terminal type provides alternative to older plug-in relay technology
Smallest automotive PCB relay in its class
100% modular footprint for 1x relay or 2x relay PCB layout

Applications

Transportation
Automotive aftermarket
Mobility

Energy
General DC power

Specifications

12V carry capacity
14V_DC 70W load power
100Ω to 160Ω coil resistance

1A minimum switching current
-40°C to +125°C operating temperature range

Omron Electronics G8K Miniature Power PCB Relays

Features

Applications

Specifications

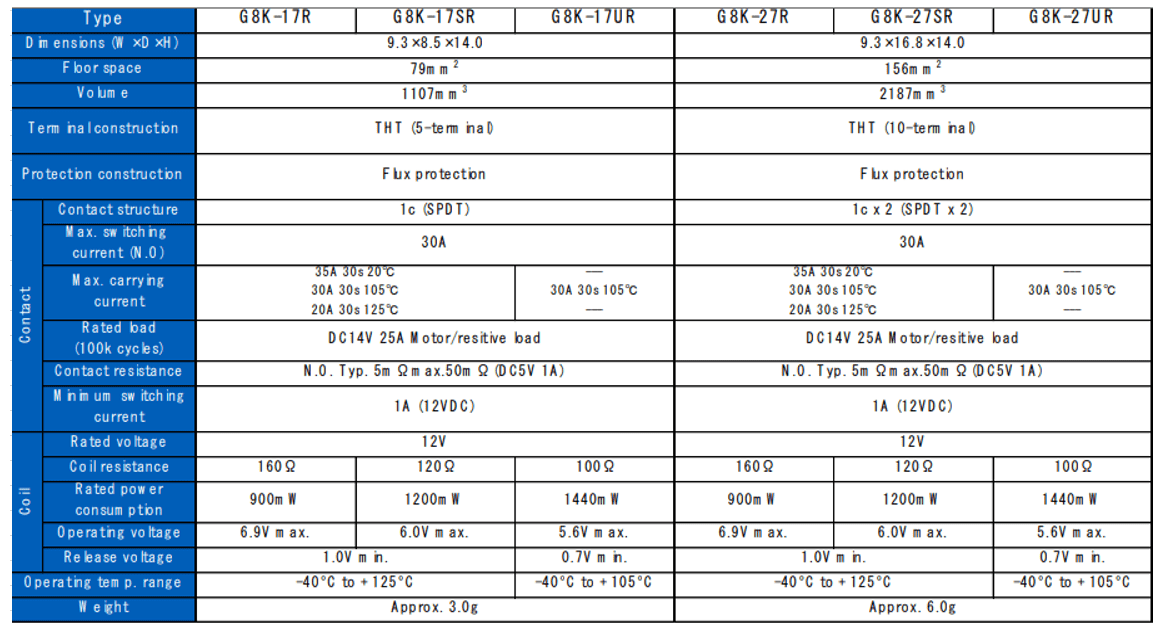

Comparison Chart

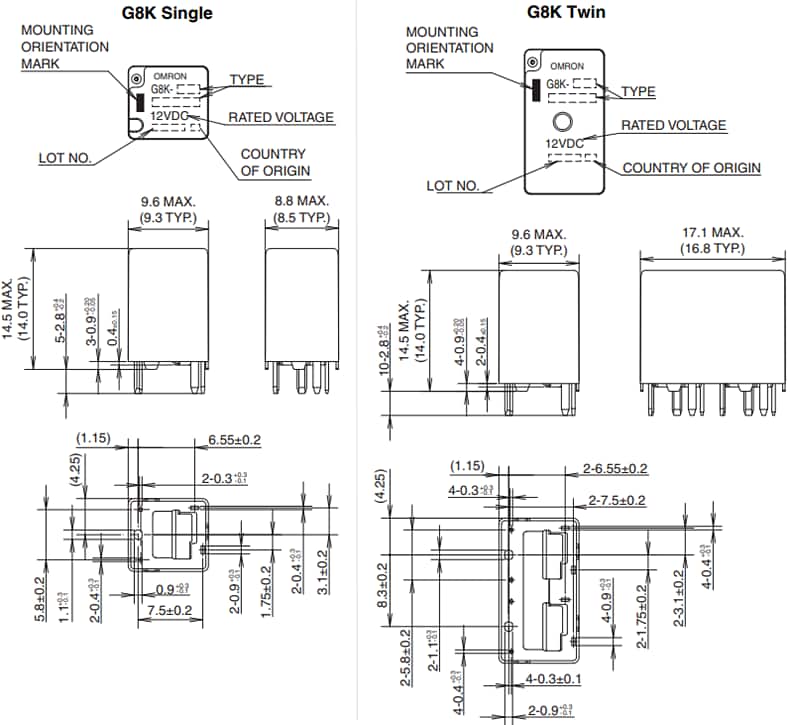

Dimensions
