Omron Electronics G7EB-E 120A Carry PCB Power Relays

Omron Electronics G7EB-E 120A Carry PCB Power Relays support high current applications with high capacity load ratings, allowing support of 120A carry currents compared to the standard 100A rating. This high-capacity characteristic makes the series ideal for EV charging stations, power conditioner inverters, industrial inverters, and uninterruptible power supplies (UPS). The high-capacity modules reduce the need for complex temperature designs and the inclusion of heat transfer devices due to their low contact resistance compared to similar relays. Omron Electronics G7EB-E 120A Carry PCB Power Relays offer an SPST-NO (1a) contact form, high 10kV impulse withstand voltage, and -40°C to +85°C ambient temperature range. The G7EB-E series is RoHS compliant.

Features

Capable of supporting high capacity switching and carry currents
480V_AC/100A high current switching
60V_DC/100A for normal/reverse direction switching
SPST-NO (1a) contact form
Double contact type
Low initial contact resistance (5mΩ) reduces heat generation due to contact resistance

Lower heat generation, less need for materials such as heat sinks
Holding voltage required is 45% to 60% of rated voltage, reduces power consumption to 575mW from 2800mW when held at 45% of rated voltage
Ag alloy contact material (Cd free)
RoHS compliant

Applications

High voltage designs
EV charging stations
Power conditioner inverters

Industrial inverters
UPS

Specifications

120A rated carry current
800V_AC, 60V_DC maximum switching voltage
100A maximum switching current
High 10kV impulse withstand voltage

≥3.6mm contact gap (applied to VDE0126)
Low ≥5mΩ initial contact resistance
-40°C to +85°C ambient temperature range (with no icing or condensation)

Omron Electronics G7EB-E 120A Carry PCB Power Relays

Features

Applications

Specifications

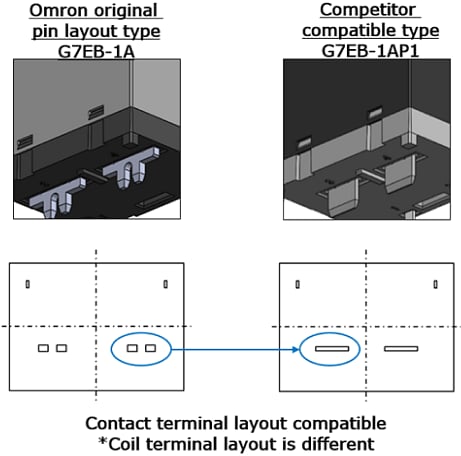

Compatibility Option

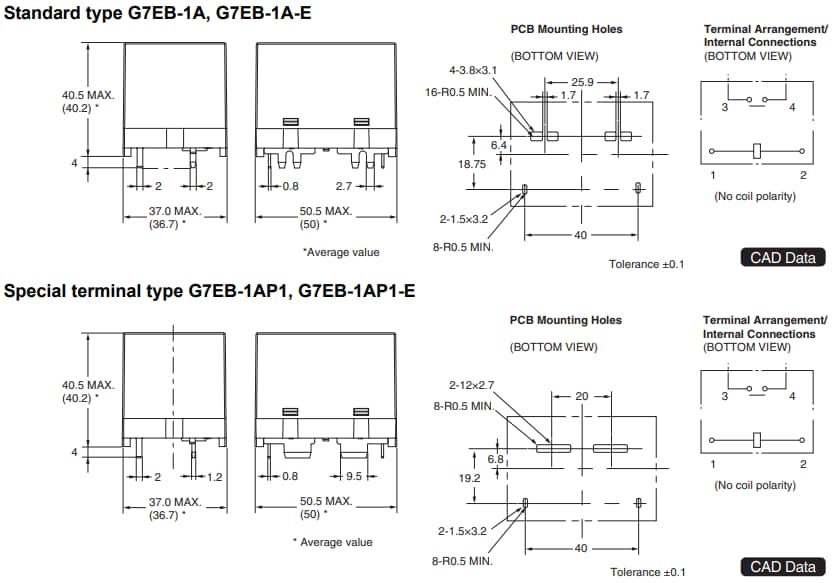

Dimensions
