Omron Electronics G3VM AY/DY High Dielectric Strength MOSFET Relays

Omron Electronics G3VM AY/DY High Dielectric Strength MOSFET Relays offer high dielectric strength of up to 5kV and have an operating temperature threshold of +110°C. Omron Electronics G3VM AY/DY High Dielectric Strength MOSFET Relays include surface mount and through-hole versions and offer 2mA maximum low trigger LED forward current. These MOSFET relays are ideal for use in smart meters, security equipment, communication equipment, and test and measurement equipment.

Features

40V/60V/200V/350V/400V/600V load voltage
90mA to 2000mA continuous load current
5000V_RMS dielectric strength between I/O
Surface mount and through-hole versions

1a (SPST-NO) contact form
2mA maximum low trigger LED forward current
Up to ~+110°C operation

Applications

Smart meters
Security equipment

Communication equipment
Test and measurement equipment

Omron Electronics G3VM AY/DY High Dielectric Strength MOSFET Relays

Features

Applications

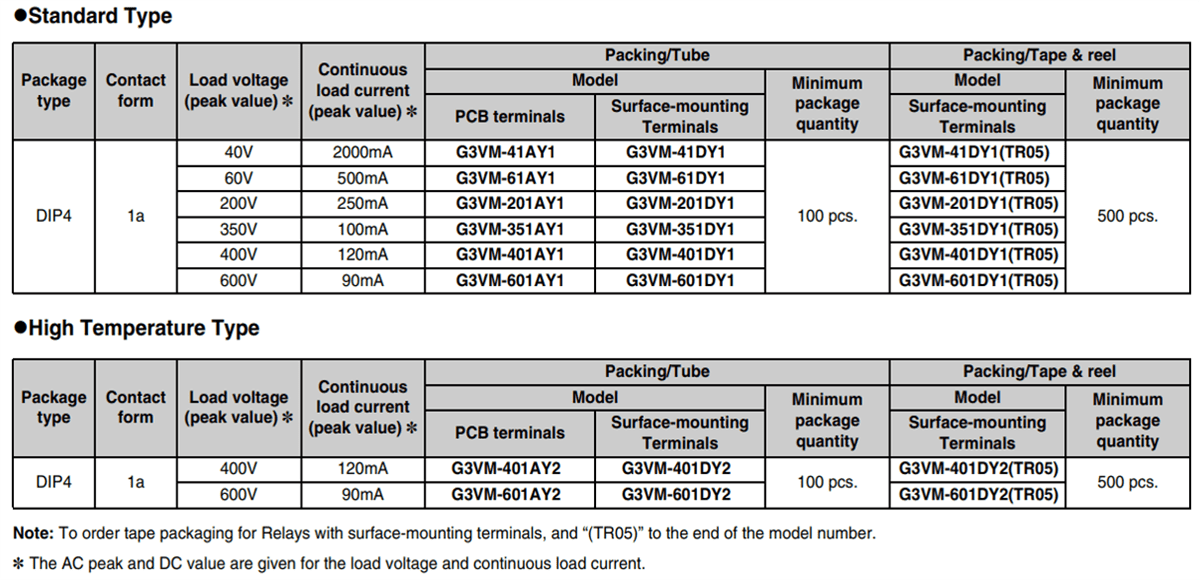

Ordering Information
