Omron Electronics G3VM-63BR/63ER MOSFET Relays

Omron G3VM-63BR/63ER MOSFET Relays offer PCB and SMT-type terminal options. These relays come in DIP 6-pin packages with SPST-NC contacts that achieve low on-resistance and high switching capacity of a mechanical relay. The G3VM-63BR/63ER MOSFET relays support rated loads of 1.2A at 60V_AC and 2.4A at 60V_DC, which is advantageous in applications with high current requirements. These MOSFET relays operate from -40°C to 110°C ambient temperatures, allowing for higher design flexibility.

The G3VM-63BR/63ER MOSFET relays offer 7mm minimum creepage distance, 7mm minimum clearance distance, and 0.3mm internal isolation thickness. Typical applications include PLC, machine tools, robot controllers, industrial equipment, test and measurement equipment, communication equipment, and security equipment.

Features

Contact form 1b (SPST-NC)
PCB and SMT-type terminal options
Achieve high-capacity specifications with low on-resistance

Achieve high-temperature rating
Multiple pack quantities available (tape packaging is available only for SMT type)

Specifications

Rated loads of 1.2A at 60V_AC and 2.4A at 60V_DC (for connection C)
60V load voltage
7mm minimum creepage distance
7mm minimum clearance distance
0.3mm internal isolation thickness

0.3ms typical turn-on time
2ms typical turn-off time
-40°C to 110°C ambient operating temperature range
DIP 6-pin package

Applications

PLC
Robot controllers
General-purpose inverters
Temperature controllers
Machine tools

Fire/smoke/gas alarm system
Industrial equipment
Communication equipment
Security equipment
Test and measurement equipment

Omron Electronics G3VM-63BR/63ER MOSFET Relays

Features

Specifications

Applications

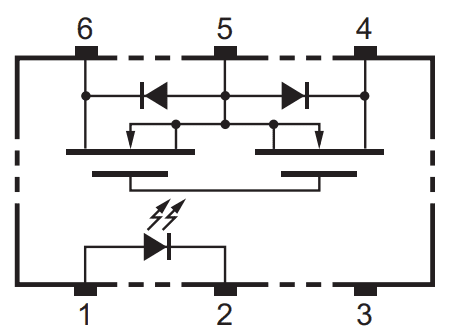

Internal Connection

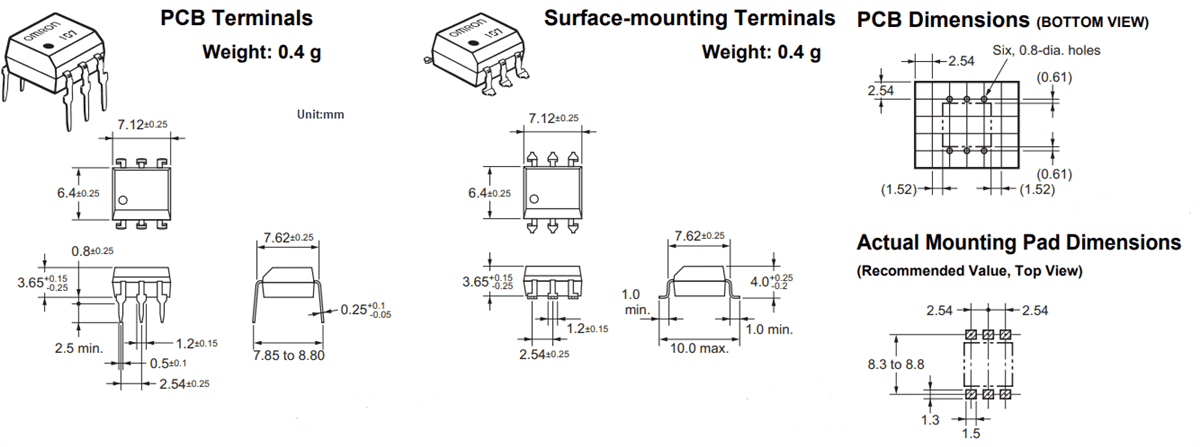

Case and Mounting Pad Dimensions
