Omron Electronics EE-SX4330 Transmissive SMD-Type PhotoMicroSensor

Omron Electronics EE-SX4330 Transmissive SMD-Type PhotoMicroSensor is designed to make devices more compact while allowing for use in a variety of applications. This surface-mount, Photo IC output-type sensor in a 5mm x 6mm x 4mm package offers a high level of design flexibility for applications such as factory automation (FA) equipment, chip mounters, cutting machines, and more. Omron EE-SX4330 PhotoMicroSensor offers a 3mm sensing distance and a transmissive sensing method.

Features

Reflow soldering compatible
Compact size (5mm x 6mm x 4mm output)

Photo-IC output reduces the number of parts needed
Stable mounting structure

Applications

FA equipment
Chip mounters

Automation equipment
Cutting machines

Specifications

3mm sensing distance
SMT connecting method
Transmissive (slot-type) sensing method
Emitter
- 25mA forward current
- 5V reverse voltage

Detector
- 9V power supply voltage
- 17V output voltage
- 8mA output current
- 8mW permissible output dissipation

Omron Electronics EE-SX4330 Transmissive SMD-Type PhotoMicroSensor

Features

Applications

Specifications

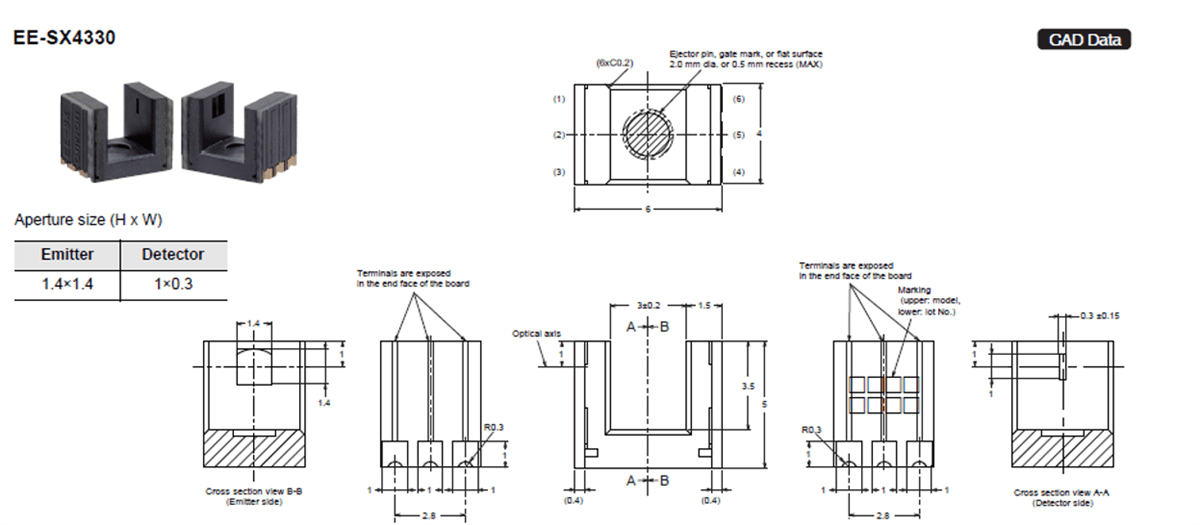

Appearance
