Omron Electronics D2LS Gaming Switches

Omron Electronics D2LS Gaming Switches are compact, surface-mounting switches ideal for applications requiring long durability. The high operating force (OF) provides up 20M operations for 0.6N OF and up to 10M operations for 1.2N OF. These ultra-subminiature switches offer dimensions of 8.6mm x 4.8mm x 3.0mm (W x D x H). Each switch comes with an embossed taping package for automatic mounting. Omron Electronics D2LS Gaming Switches offer a clear click feeling and SPST-NO contact form. Applications include Esports gaming, controllers, digital pens, laser pointers, mobile products, and more.

Features

Compact, surface-mounting switches for applications requiring long durability
High operating force for durability
- 1.2N OF: 10M operations
- 0.6N OF: 20M operations

SPST-NO contact form
8.6mm x 4.8mm x 3.0mm dimensions (W x D x H)
Clear click feeling
Embossed taping package for automatic mounting

Applications

Esports gaming
Computer mouse
Controllers
Digital pens

Laser pointers
Battery charger cradles
Mobile products

Specifications

1mm/s to 500mm/s operating speed
100MΩ minimum insulation resistance at 500V_DC

100mΩ maximum contact resistance (initial value)
-25°C to +85°C operating temperature range

Omron Electronics D2LS Gaming Switches

Features

Applications

Specifications

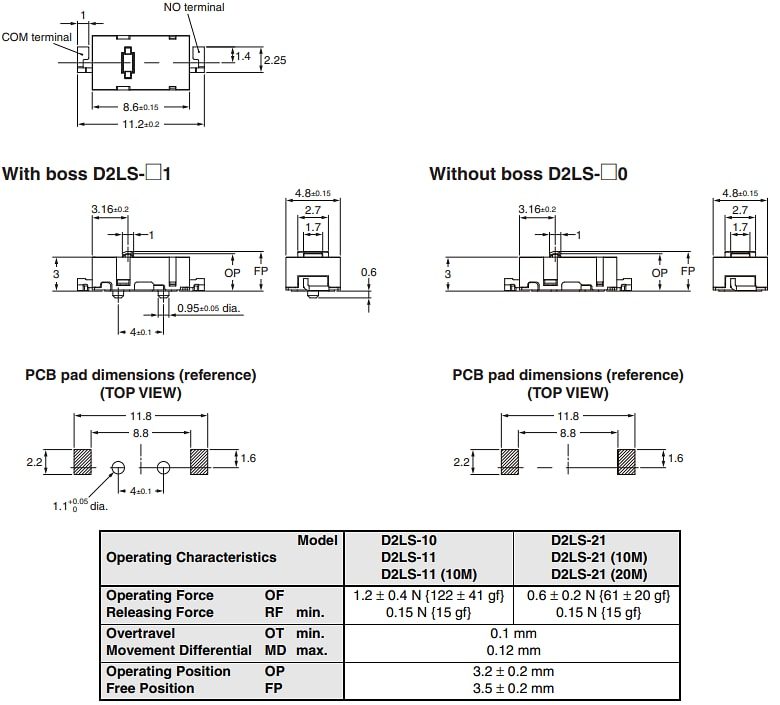

Dimensions (mm) & Characteristics
