Ohmite TKH55 SMD Thick Film Resistors

Ohmite TKH55 SMD Thick Film Resistors feature a thick-film construction designed to replace TO-263 packages. The resistors offer a 55W rated power, low 3°C/W thermal resistance, and a 2.65pF typical capacitance rating. The Ohmite TKH55 SMD Thick Film Resistors provide a surface-mount design capable of high wattage dissipation. The TKH55 series enables non-inductive performance, ideal for snubber, motor control inverter, photovoltaic, and other applications. The resistors are RoHS compliant and operate within a -55°C to +175°C temperature range.

Features

Low profile
Low thermal resistance
RoHS compliant

Improved cooling performance
Replaceable D2PAK power resistor

Applications

Snubbers
Gate controls
Bleeders
Filters

Rush current protection
Motor control inverters
Photovoltaics
Uninterruptible power supply

Specifications

55W rated power
3°C/W low thermal resistance
2.65pF typical capacitance rating
14.65nH typical inductance

10A max operating current
<500V max operating voltage
-55°C to +175°C operating temperature range

Ohmite TKH55 SMD Thick Film Resistors

Features

Applications

Specifications

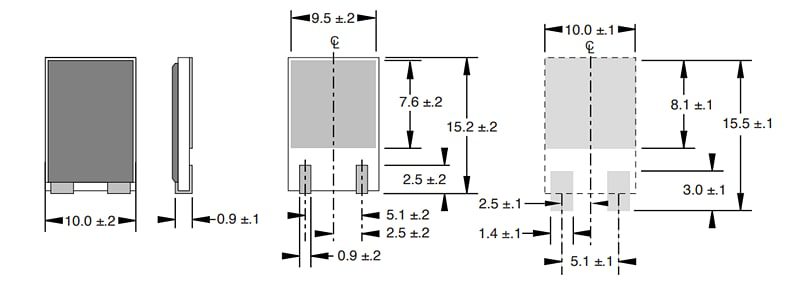

Dimensions (mm)
