ODU AMC® NP Quick Disconnect Military Connectors

ODU AMC® NP Quick Disconnect Military Connectors are miniature quick disconnect connectors designed for military applications. These connectors feature IP68 protection ratings, 2000 mating cycles, and a current carrying capacity of up to 7.5A. AMC NP Quick Disconnect Military Connectors include 6- and 7-pin configurations and 11 keying options. These connectors are easy to handle, feature a robust break-away design that makes them ideal for military and security applications, and are available in crimp and solder versions.

Features

Quick disconnect
Power-efficient contacts with USB 2.0 capabilities
Minimum 2000 mating cycles
IP68 rating

Solder, crimp, and PCB termination configurations
RoHS-compliant carbon plating
Rugged break-away design
Cable assembly integrated solutions

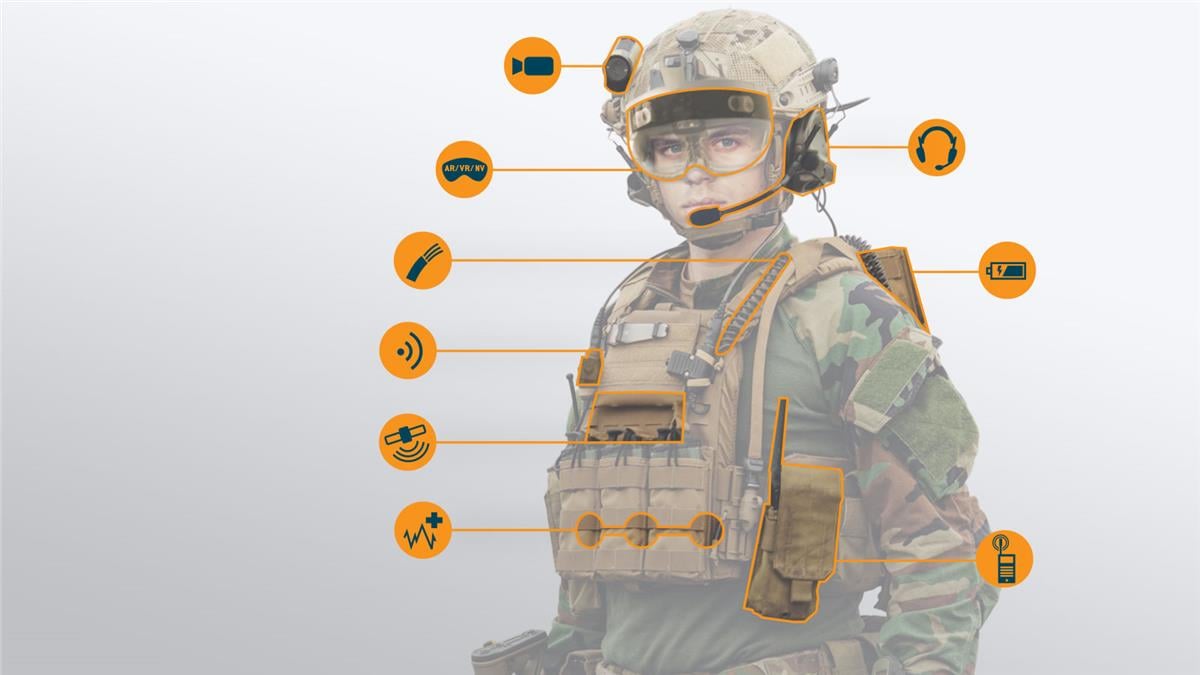

Applications

Military
Security
Power distribution units (PDU)
Comfortable wearable batteries (CWB)

C4ISR peripherals
Compatible with open architecture standards (NATO STANAG 4695, NETT Warrior, and GOSSRA)

Specifications

6- and 7-position configurations
11 keying configurations
IP68, 20M, 120 minutes (when mated)

-18°C to +71°C operating temperature
2000 minimum mating cycles
Up to 7.5A current capacity
