NXP Semiconductors TWR-KM35Z75M Development Module

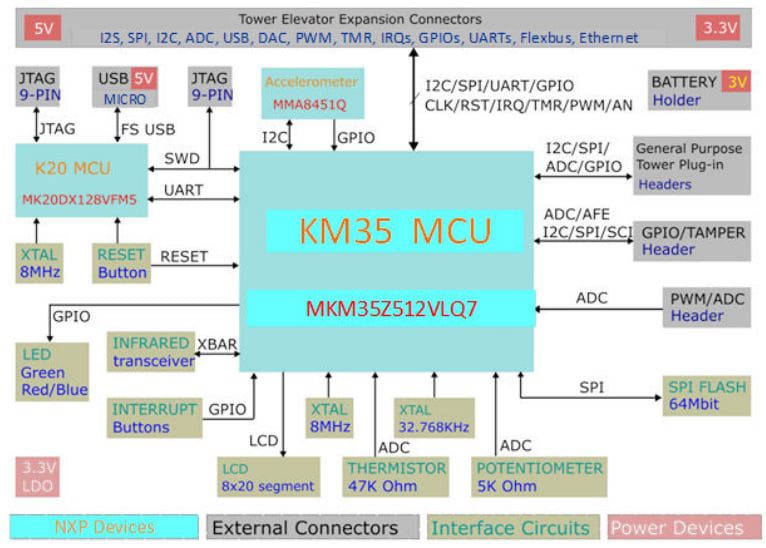

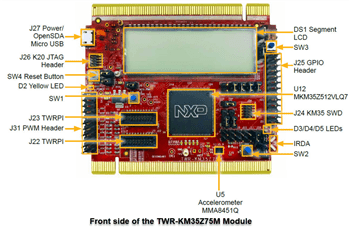

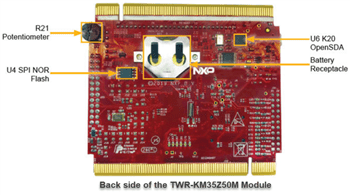

NXP Semiconductors TWR-KM35Z75M Development Module provides a development platform for the KM3x family of Kinetis^® MCUs. This module operates as a standalone debug tool and can also be combined and used as part of the modular Tower^® system development platform. The TWR-KM35Z75M development boards feature a large 160-segment glass LCD, three user-controllable LEDs, an NTC temperature sensor, a potentiometer, and a general-purpose Tower Plug-In (TWRPI) socket.

Features

Supports KM3x MCUs:
- KM35Z512VLQ7 MCU
- 75MHz, 512KB Flash, 64KB RAM, low power MCU, and LQFP144 package
- Tower^®-compatible microcontroller module
NTC temperature sensor
Three-axis accelerometer/anti-tamper tilt sensor (MMA8451Q)
Independent, battery-operated power supply for Real-Time Clock (RTC), and tamper detection modules
On-board debug circuit:
- Open-source SWD (OpenSDA) with virtual serial port
USB interface with mini-B USB connector
Headers for direct GPIO and ADC access
