NXP Semiconductors SJA1110 Secure TSN Ethernet Switch

NXP Semiconductors SJA1110 Secure TSN Ethernet Switch is a four-pin-compatible and software-compatible automotive Ethernet Switch SoC. The NXP Semiconductors SJA1110 offers a scalable solution for automotive applications. The SJA1110 comes with hardware-assisted security and safety capabilities. The devices include multi-gigabit SGMII interfaces with AVB and TSN standards. NXP also offers a complete software package including SDK, AUTOSAR drives, and AVB synchronization stack.

Features

Integrated 100BASE-T1 and 100BASE-TX PHYs
Integrated Arm® Cortex®-M7 Core
Very good packet inspection and DoS prevention capabilities
Advanced secure boot capabilities
Innovative Automotive Ethernet functional safety features

Rich set of Time-Sensitive Networking standards
Rich set of NXP original AVB and AUTOSAR software
Complete system solution with S32G Vehicle Networking Processor and VR5510 power management unit

Applications

Automotive
Central computer
Gateway

Instrument cluster
Service-oriented gateway
Zonal applications

NXP Semiconductors SJA1110 Secure TSN Ethernet Switch

Features

Applications

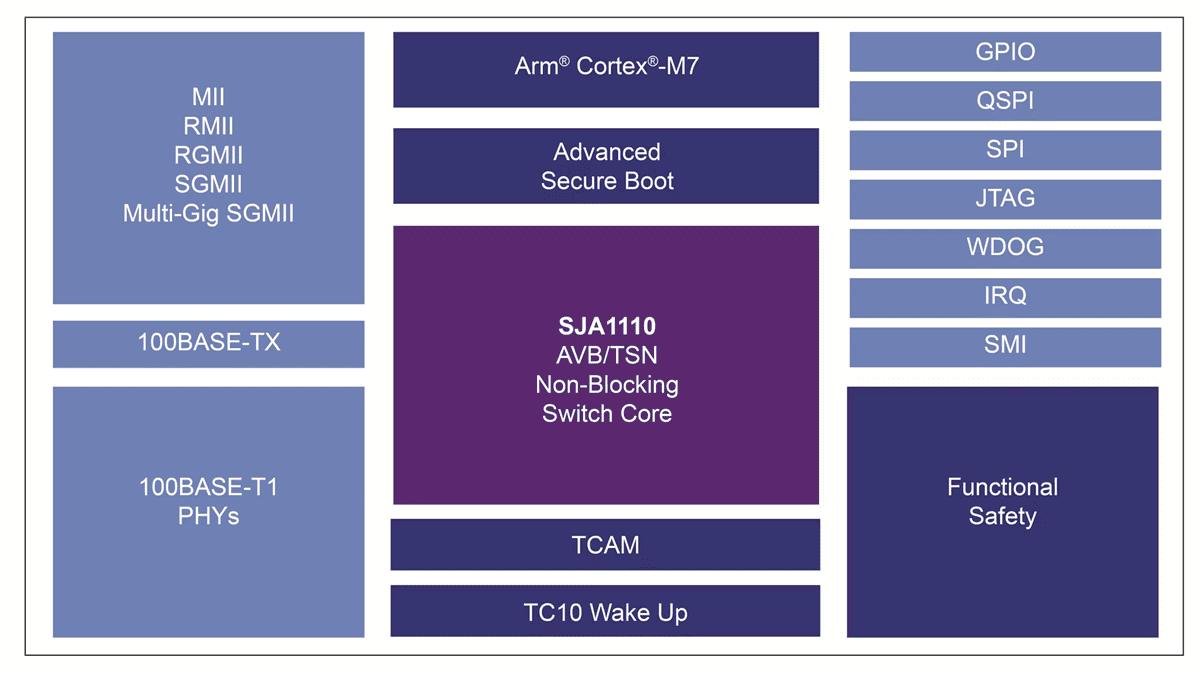

Block Diagram
