NXP Semiconductors S32G3 Vehicle Networking Reference Design

NXP Semiconductors S32G3 Vehicle Networking Reference Design is designed for vehicle Service-Oriented Gateways (SoGs), domain control applications, high-performance processing, and safety and security applications. This reference design is based on the octal Arm^® Cortex^®-A53 cores and quad, dual-core lockstep Arm Cortex-M7 cores. The S32G3 vehicle networking reference design offers high-performance, real-time network performance, multi-gigabit packet acceleration and security, and rich input/output (I/O). Typical applications include Firmware Over-the-Air (FOTA), automotive access points, safety processors, service-oriented gateway, vehicle compute, and zonal gateways.

Features

Hardware:
- Supports service-oriented gateway and domain controller applications
- Multiple network interfaces featuring 18 CAN/CAN FD and 12 Ethernet ports
- Supports low-power mode and multiple wake-up sources
- Supports two M.2 modules (M-key slot, E-key slot)
- ISO 26262 support by using safety components and architecture

12V AC-DC adapter
LIN, CAN/CAN FD, 100BASE-T1, 1000BASE-T / 2.5GBASE-T, 100BASE-TX, 1000BASE-T, FlexRay, USB, PCIe, JTAG, UART, AURORA, and M.2 slots interfaces
S32G Vehicle Integration Platform (GoldVIP) provides a reference vehicle integration platform that accelerates S32G hardware evaluation, software development, and rapid prototyping efforts

Kit Contents

S32G Reference Design Board 3
Universal AC adapter
AC/DC 12V 6.67A power supply
32GB SD card
DuPont line
2x USB A-to-micro B cables (UART0/1)

CAT6A Ethernet cable
Ethernet loopback cable
3x Heatsinks
FAN solution for S32G
Screws (M.2 slots)
1.27mm mini jumpers and cables

Applications

Automotive access point
Automotive data logger
Automotive zone controller
Domain controllers
Firmware Over-the-Air (FOTA)
Gateway

In-vehicle networks
Safety processors
Service-oriented gateway
Vehicle compute
Zonal gateways

NXP Semiconductors S32G3 Vehicle Networking Reference Design

Features

Kit Contents

Applications

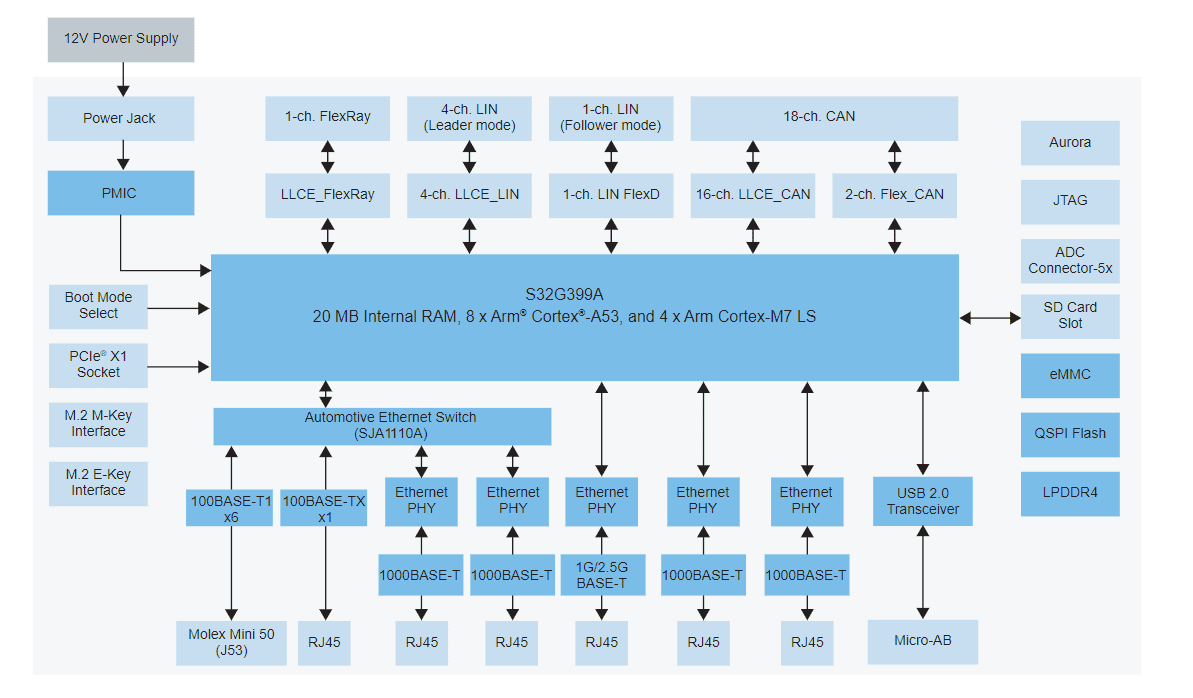

Block Diagram
