NXP Semiconductors P3T1x Digital Temperature Sensors

NXP Semiconductors P3T1x Digital Temperature Sensors utilize an on-chip band gap temperature sensor and an A-to-D conversion technique with over-temperature detection. These digital temperature sensors feature several configuration and data registers to store the device settings, including device operation mode and a temperature register to store the digital temp reading. A controller can communicate this via the 2-wire serial I³C (up to 12.5MHz) and I²C (up to 3.4MHz) interface. The P3T1x digital temperature sensors feature a short conversion time and 1.4V up to 3.6V operating voltage range. Applications include SSD drives, laptops, telecom routers, Advanced Driver Assistance Systems (ADAS), and single/multi-core motherboard servers.

Features

Highly accurate devices from ±0.4°C up to ±2°C
Supports MIPI I³C backward compatible with I²C-bus
0.0625°C resolution internal 12-bit A-to-D converter
Compatible with industry-standard devices
1.4V up to 3.6V operating voltage

Different packages available:
- TSSOP8, WLCSP6, and WLCSP4 (coming soon)
Short conversion time
Monitoring of the PCB temp for PCB thermal management

Applications

SSD drives
Computing:
- Laptops
- Tables
- Desktops
Server:
- Single core motherboards
- Multi-core motherboards

Telecom:
- Switches
- Routers
- Base stations
Automotive:
- ADAS
- ECU unit
- TCUs unit

NXP Semiconductors P3T1x Digital Temperature Sensors

Features

Applications

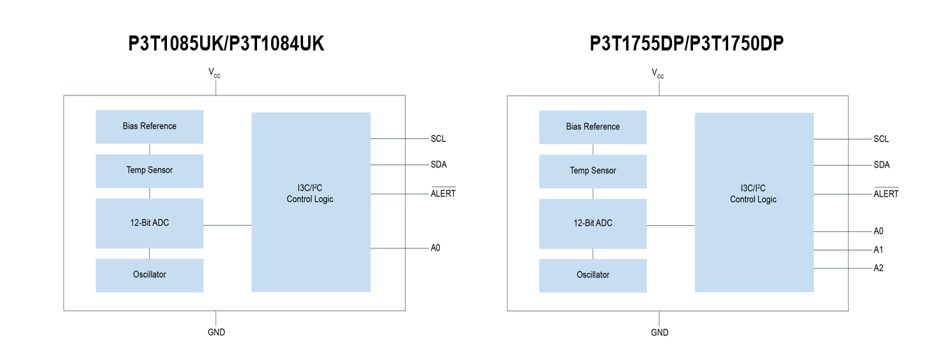

Block Diagram

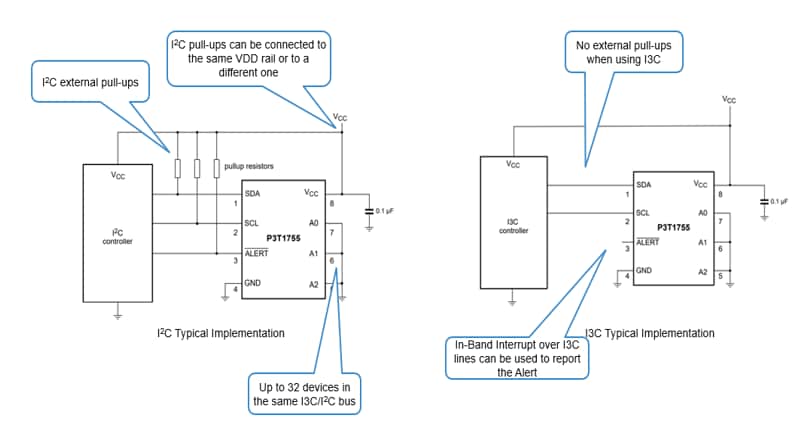

Typical Configuration
